Introduction:
The 9FQ series hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the particle size. If the size is larger than screen, the bigger particles will be sent back to be grinded again until they can get though the screen.
Applicable raw materials: Grain, straw, corn, rice husk, wheat, corn straw, corn stalk, corncob, beans, maize, spice, herb, wood chips, tree branch and various biomass etc
Features:
1. Compact structure, small size, light weight; easy to operate
2. Safety and reliable: special device to avoid the feeding knife accidents,
3. Support various power devices: electric motor, diesel engine, and tractor
4. High quality steel hammers and blades, super wear resistant
5. Adjustable output sizes: accordingly by manual method
Parameters:
Model |
Power |
Capacity (straw grinding) |
Weight (kg) |
Dimension (mm) |
9FQ-320 |
5.5 kw |
300 -350 |
260 |
900 x 500 x 800 |
9FQ-420 |
7.5 kw |
400 -500 |
350 |
1100 x 550 x 850 |
9FQ-500-28 |
15 kw |
600 -800 |
450 |
1250 x 650 x 1000 |
9FQ-500-40 |
22 kw |
900 -1000 |
750 |
1400 x 780 x 1250 |
9FQ-500-50 |
30 kw |
1000- 1500 |
900 |
1600 x 850 x 1350 |
9FQ-500-60 |
37 kw |
1500- 2000 |
1300 |
1750 x 900 x 1550 |

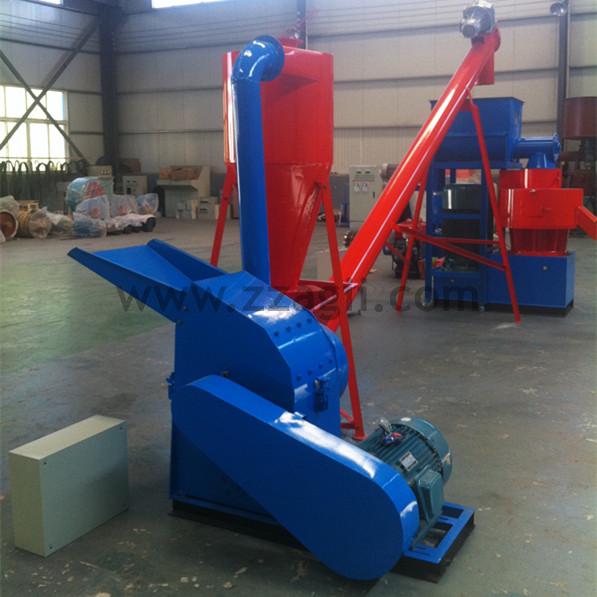

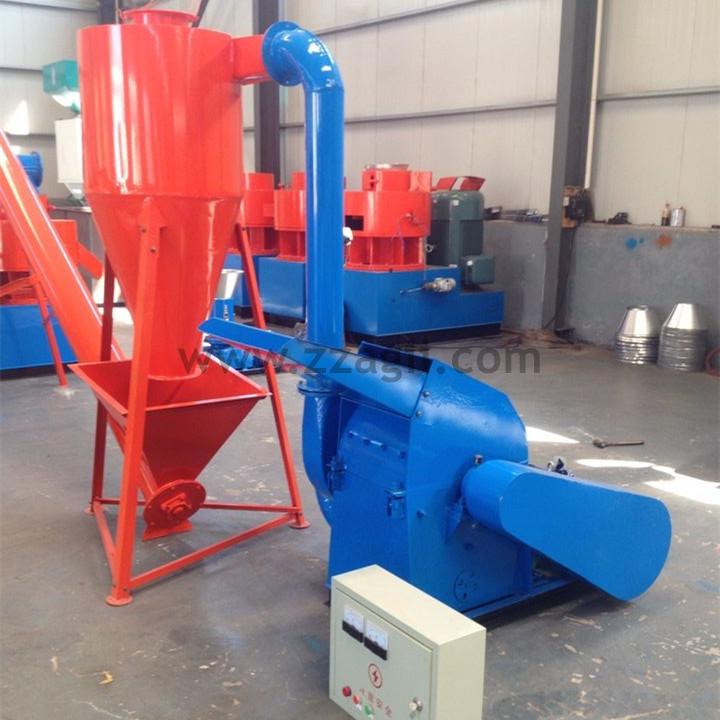

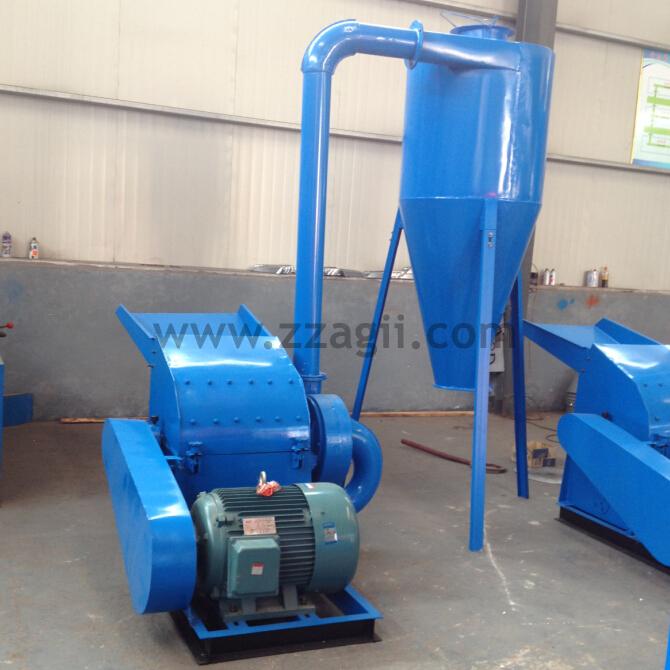

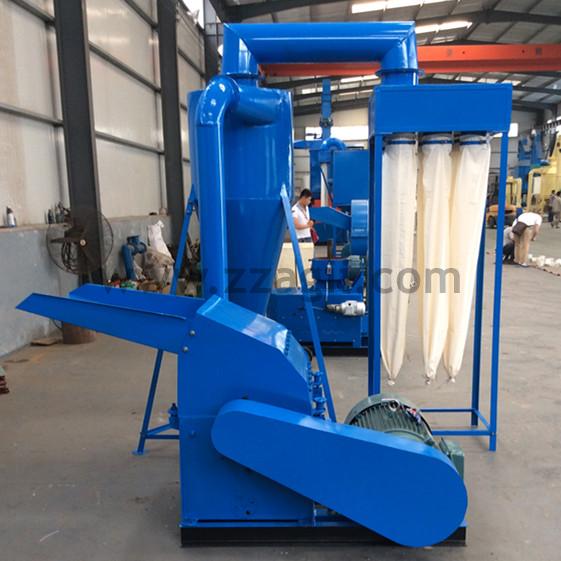

Pictures of Wood Straw Hammer Mill Crusher:
Crushed Materials with different size:
