Professional Corn Straw Hammer Mill Crusher

EMAIL

wood hammer mill machine

Introduction:

The 9FQ series hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the particle size. If the size is larger than screen, the bigger particles will be sent back to be grinded again until they can get though the screen.

Widely grinding range of Raw materials:

Grain, straw, corn, rice husk, wheat, corn straw, corn stalk, corncob, beans, maize, spice, herb, wood chips, tree branch and various biomass etc

Features:

1.  Compact structure, small size, light weight; easy to operate

2.  Safety and reliable: special device to avoid the feeding knife accidents,

3.  Support various power devices: electric motor, diesel engine, and tractor

4.  High quality steel hammers and blades, super wear resistant

5.  Adjustable output sizes: accordingly by manual method


Parameters:

Model

Power

Capacity

(straw grinding)

Weight

(kg)

Dimension

(mm)

9FQ-320

5.5 kw

300 -350

260

900 x 500 x 800

9FQ-420

7.5 kw

400 -500

350

1100 x 550 x 850

9FQ-500-28

15 kw

600 -800

450

1250 x 650 x 1000

9FQ-500-40

22 kw

900 -1000

750

1400 x 780 x 1250

9FQ-500-50

30 kw

1000- 1500

900

1600 x 850 x 1350

9FQ-500-60

37 kw

1500- 2000

1300

1750 x 900 x 1550

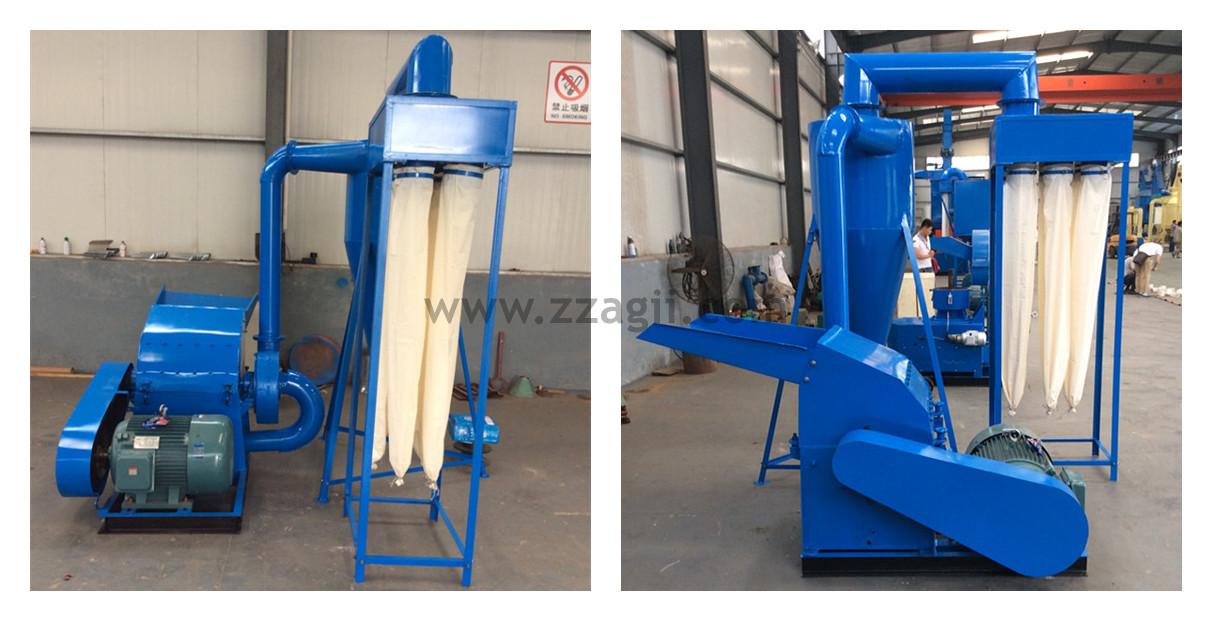

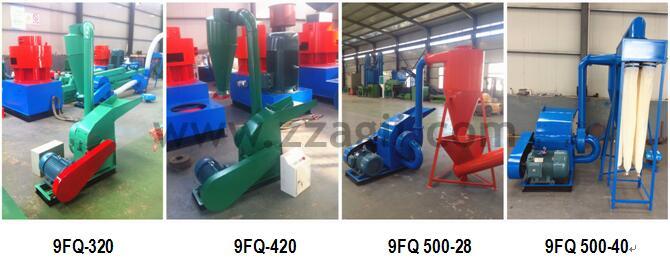

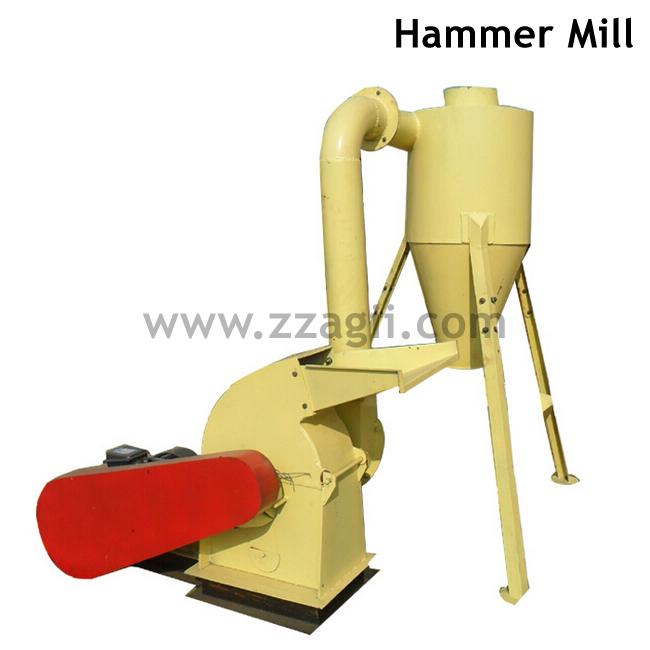

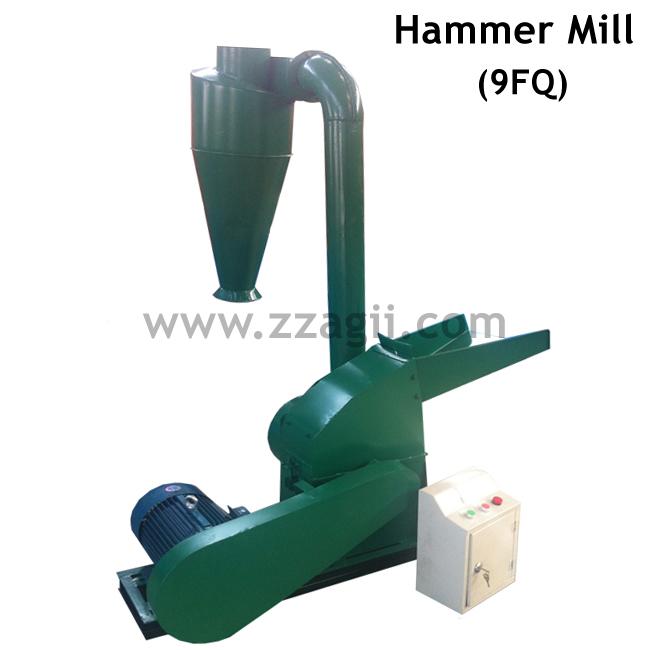

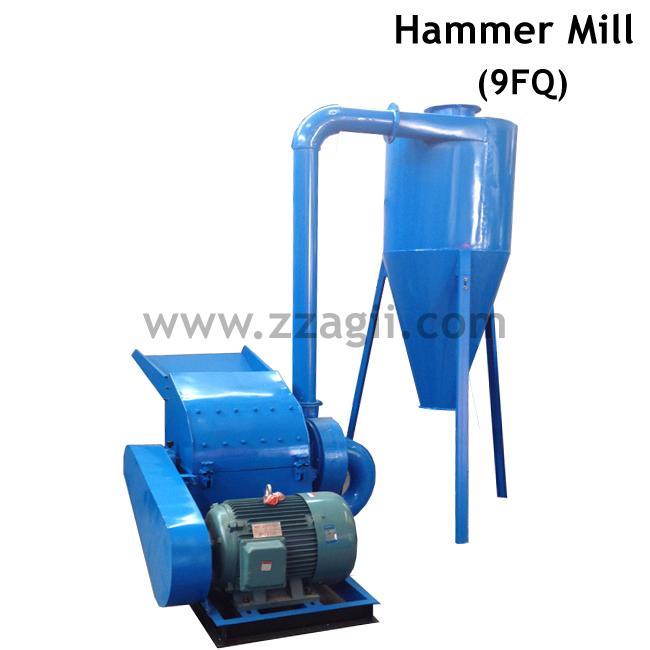

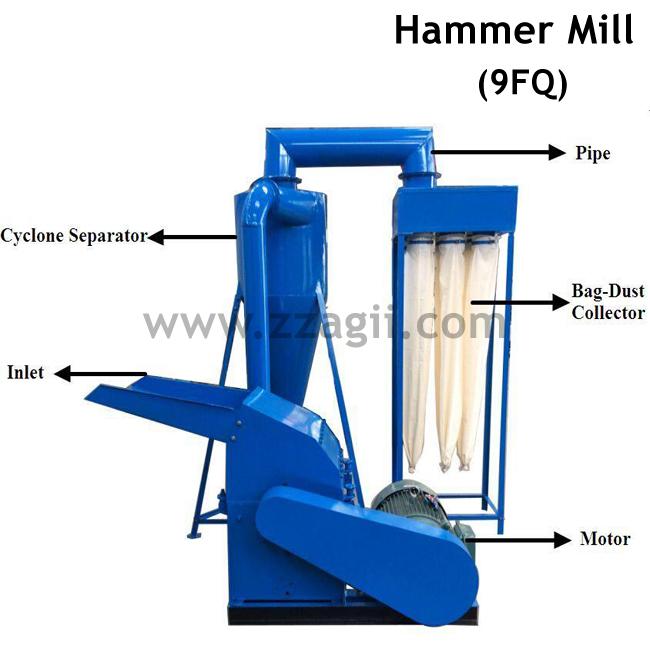

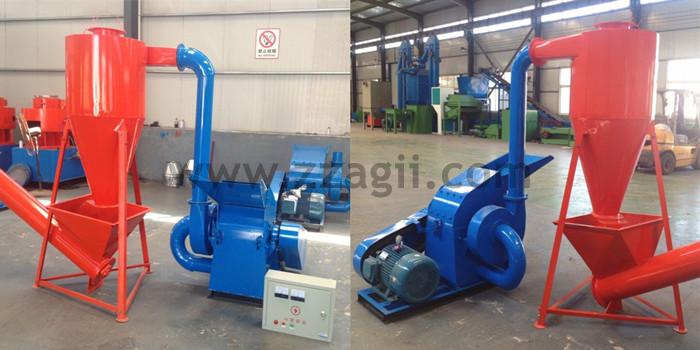

Pictures of Wood Straw Hammer Mill Crusher:

wood chips hammer crusher

feed hammer mill crusher
