150-200kg/h Shrimp Fish Feed Machine

EMAIL

Product Description

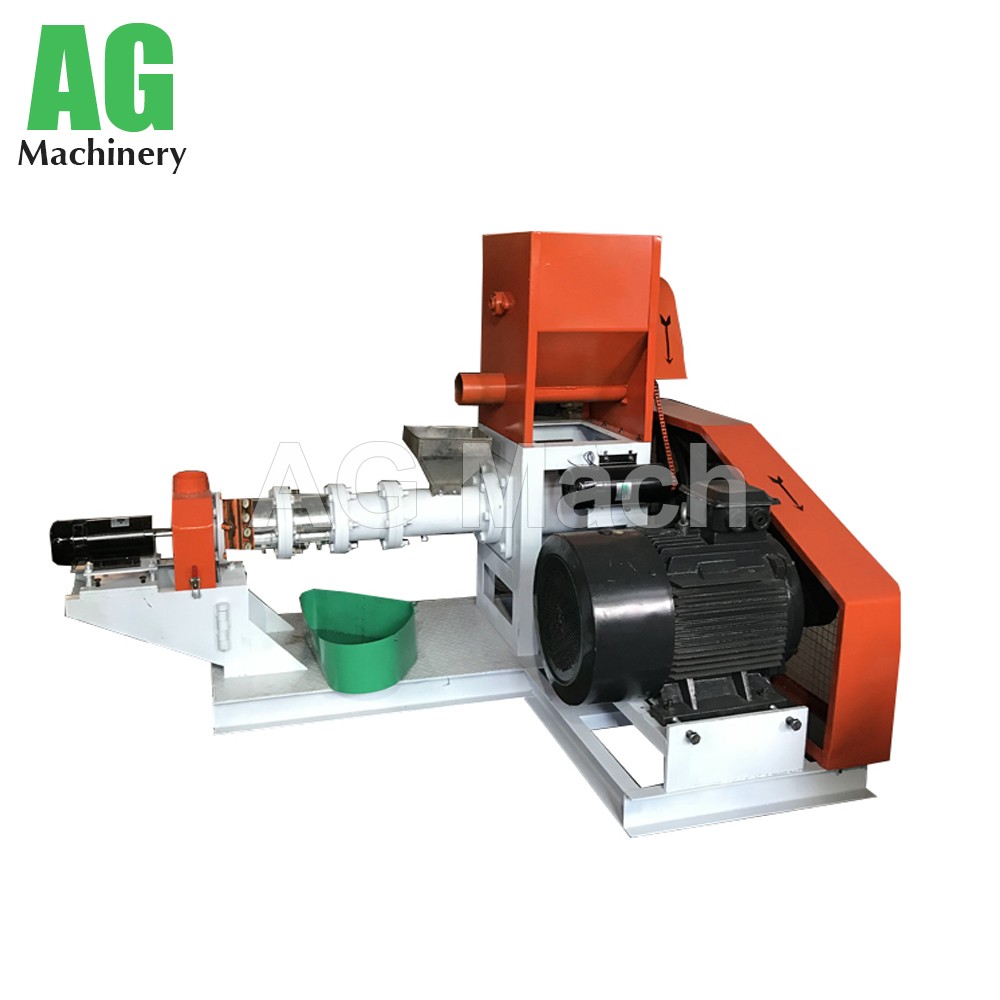

Introduction of floating fish feed machine:


* Floating fish feed pellet machine is widely used for producing grains into high-grade

aquatic feed pellets for fish, catfish,shrimps, crab etc.


* The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According

to you requirement and production scale, floating fish feed machine can be classified into dry type machine

and wet type machine.



Specification



     Model


       Output

Main

Power

 (kw)

Feeding

Power

(kw)

Cutting

Power

(kw)


       Dimension


       Weight

          (kg)

DGP 60-C

100~150 kg/h

15

0.4

0.4

1470*1120*1250

350

DGP 70-B

180~200 kg/h

18.5

0.4

0.4

1650*1400*1300

580

DGP 80-B

200~300 kg/h

22

0.6


0.6

1800*1450*1300

695

DGP 90-B

300~400 kg/h

37


0.6

0.8

2100*1450*1350

950

DGP 120-B

500~600 kg/h

55


1.1

1.5

2400*1950*1600

1700

DGP 135-B

700~800 kg/h

75


1.1

2.2

2550*2050*1650

1900

DGP 160-B

1-1.2 t/h

90


1.5

3.0

3100*2650*1800

3200

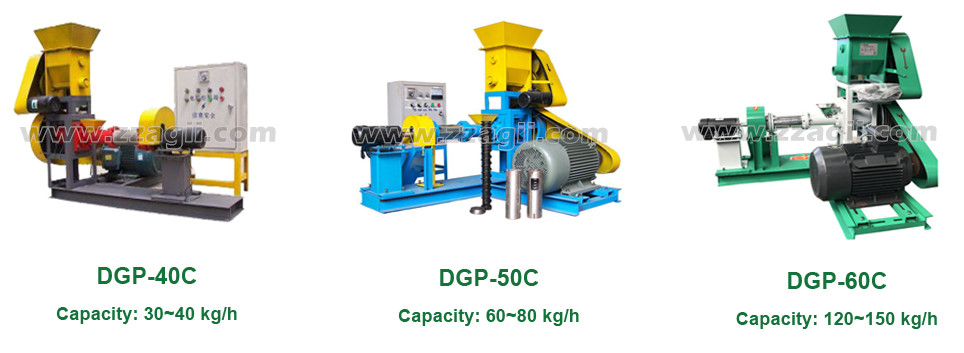

Detailed Images





Advantage

1. We can adjust the cutter of floating fish feed pellet mill to get different diameter and the length.


2.The Electric heating device improve the feed expansion rate.


3. High temperature and high pressure can kill the salmonellosis and bacterial infections.


4. The automatic floating fish feed pellet processing machine can float in water for 12 hours.


5. This puffing feed extrusion machine can make various grain wastes into animal feed pellets with rich nutrition and easy digestion.


6. Not only for making fish feed pellets, but also suitable for making feed pellets for dog, cat, bird.


7. Popular with animal breeders, medium sized feed stuff factory.



Final Products

1).Raw materials can be: Corn, Wheat, Soybean, Grain, Bone powder, etc.


2).Raw materials need grind into 60-80Mesh.


3).Raw materials moisture content: 20-30%.


4).Diameter of Final Pellets Can be: 0.9-12mm.


5). Length of the pellets can be adjustable by control the cutting knife

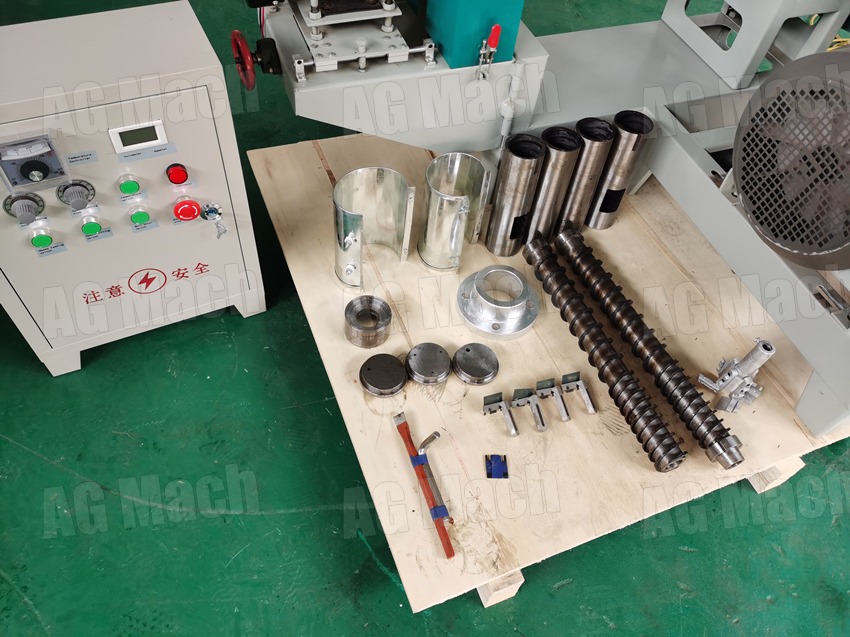

Spare parts




Bill of Lading




Packing&Shipping
