Product Description

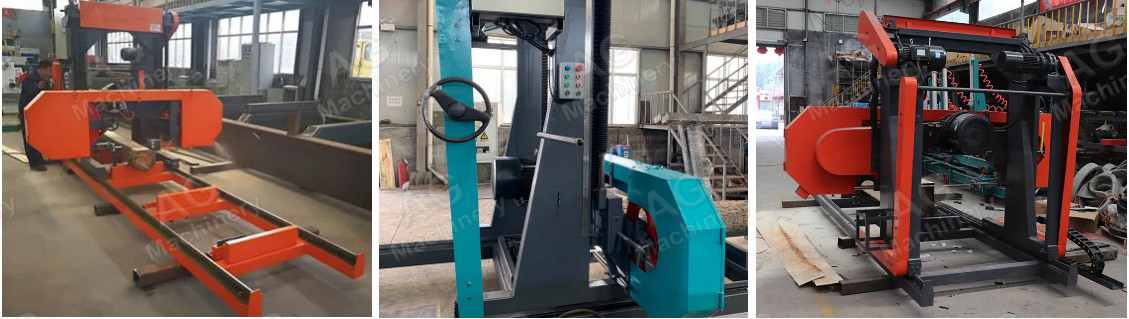

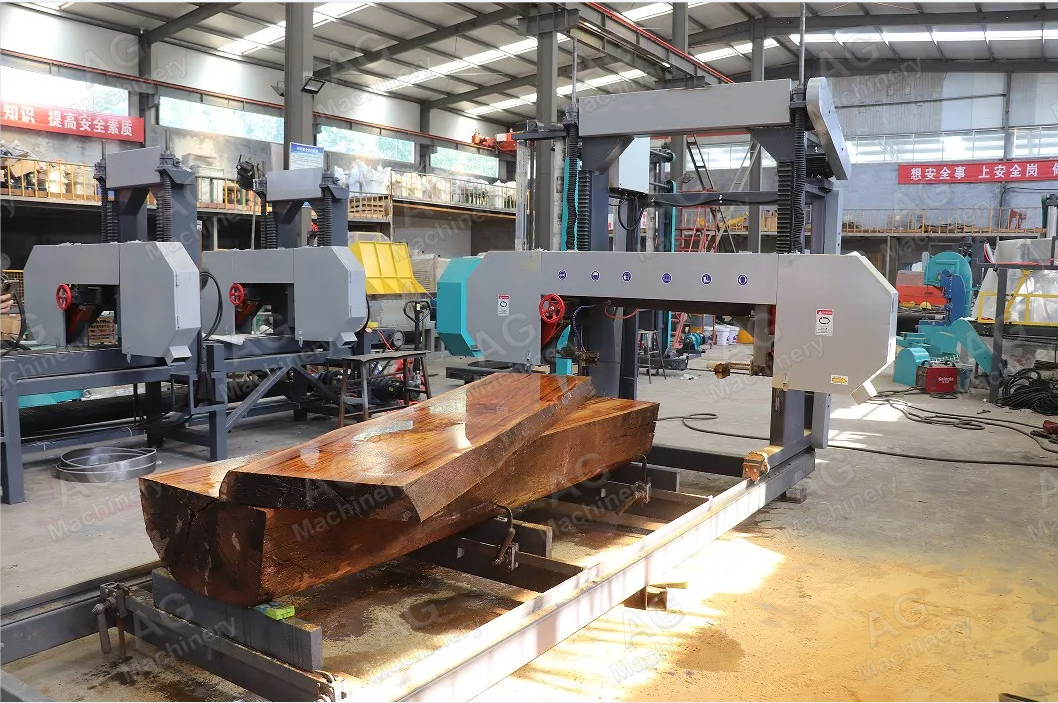

The horizontal brand saw is designed to saw the large diameter hard woods and softwood; it has large saw wheel and high power.

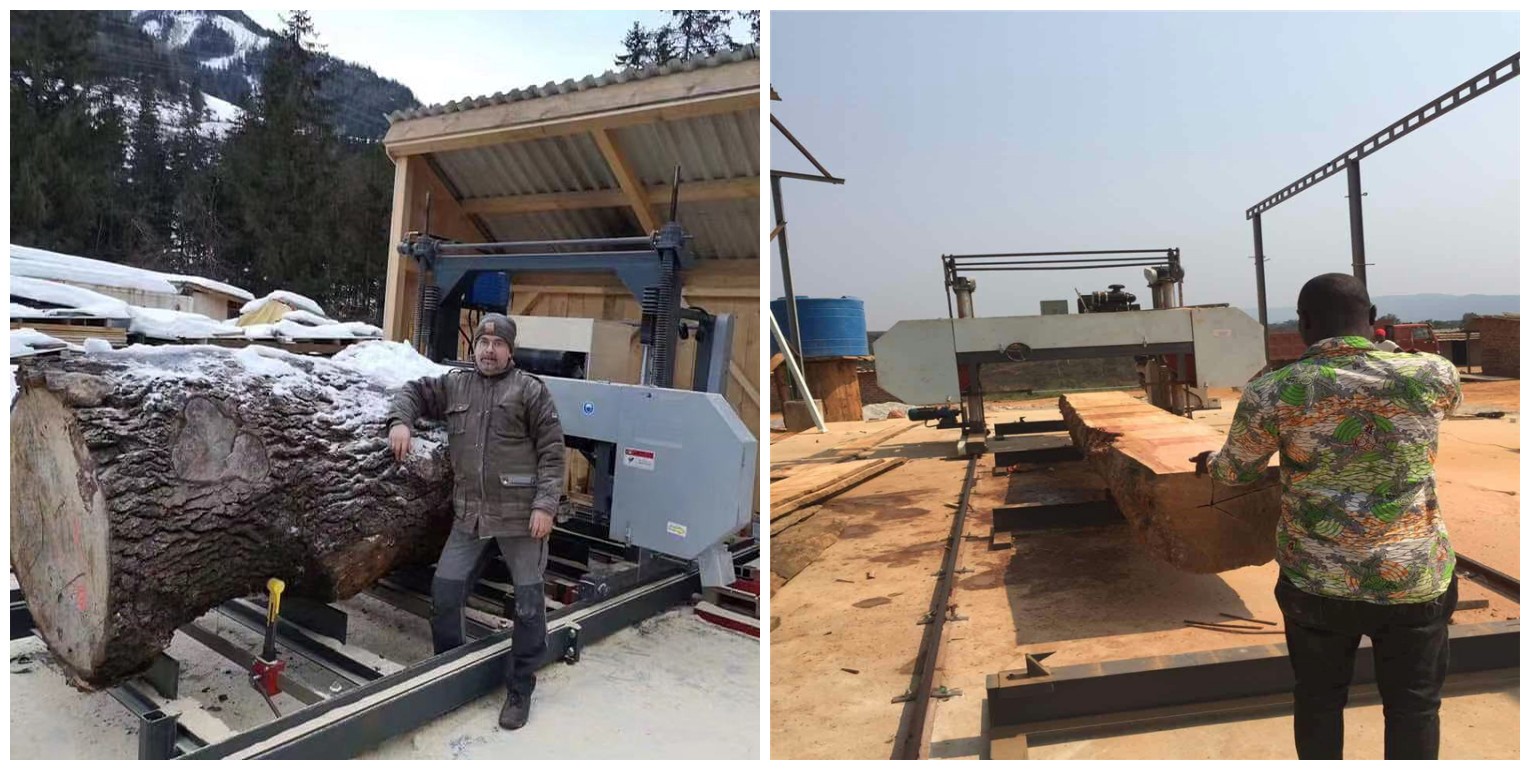

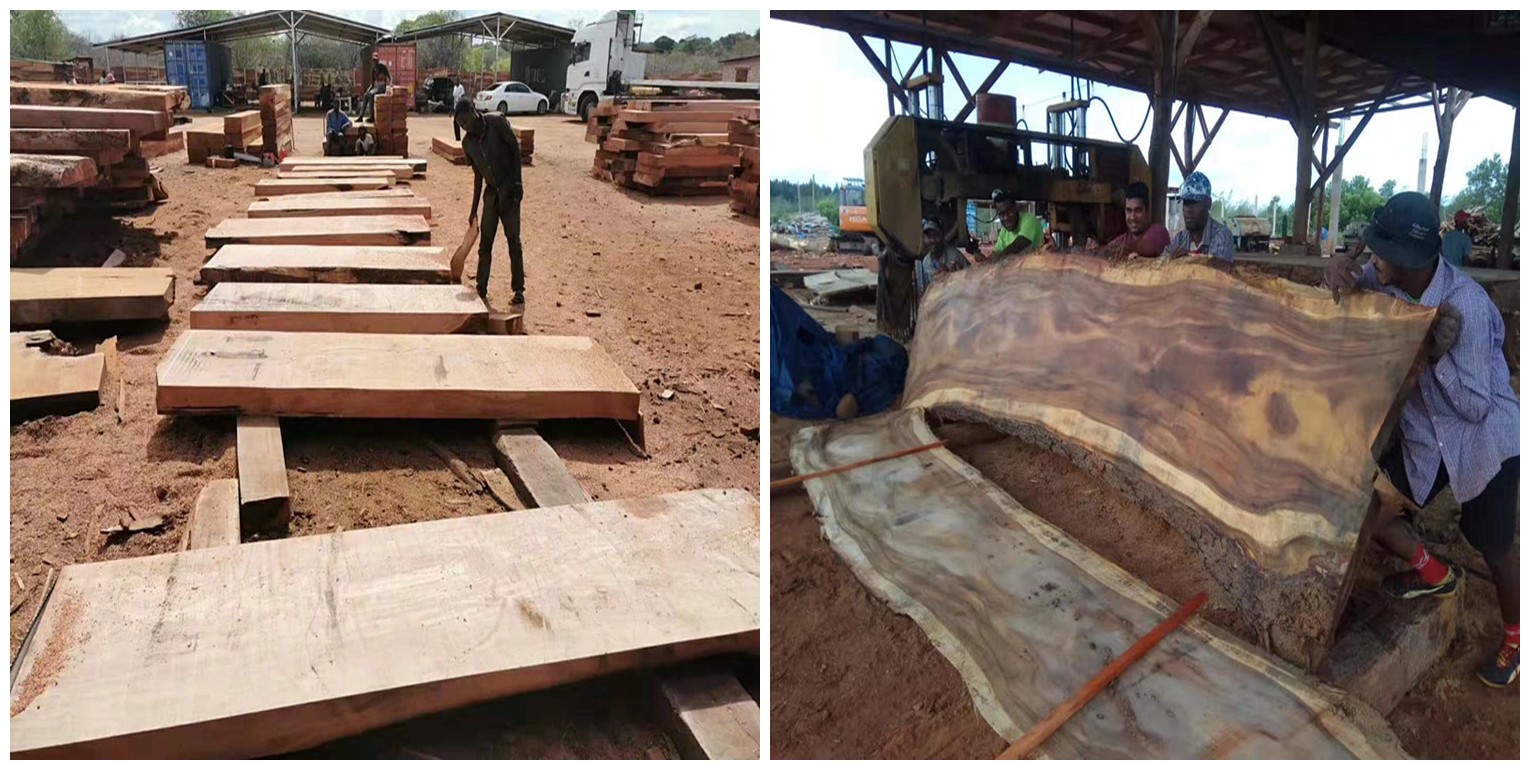

Portable horizontal bandsaw sawmills is widely used for Africa rosewoods, birch, spruce, oak, teak woods cutting. Owe reputation position to

the steady performance of sawing large diameter wood in Congo, Kenya, Angola and so on.

Technical Parameter

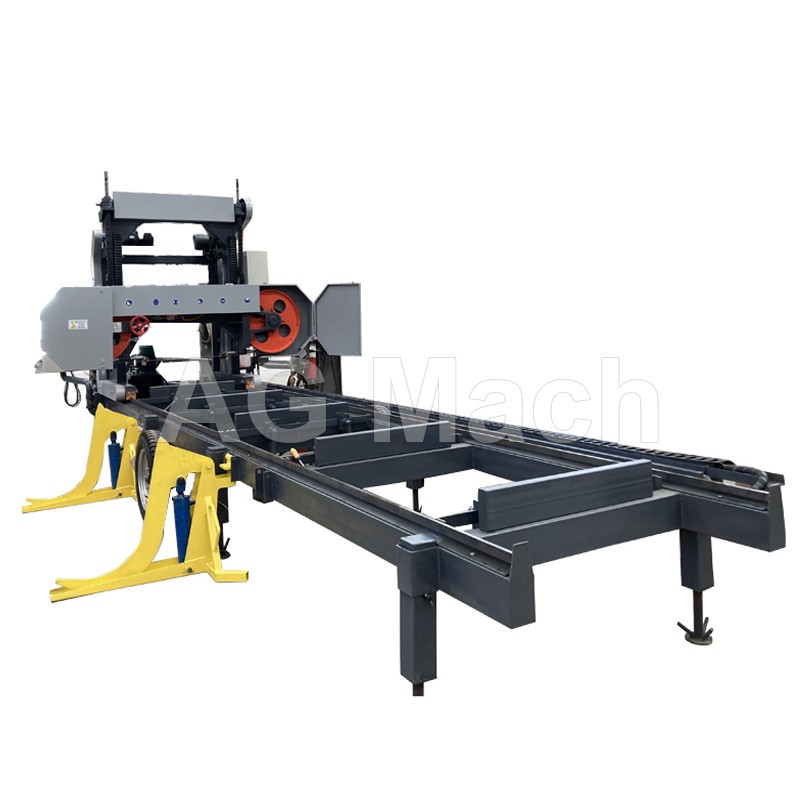

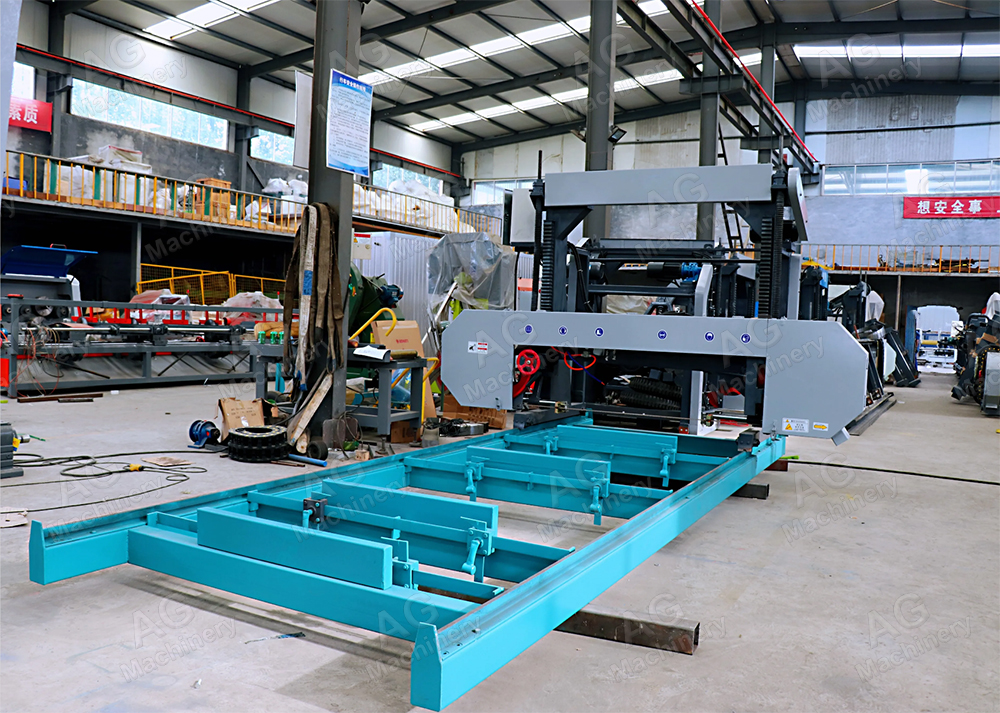

Electric Horizontal Band Sawmill

Model	MJ700E	MJ1000E	MJ1300E	MJ1600E
Sawing Wood Diameter	700mm	1000mm	1300mm	1600mm
Saw Wheel Diameter	600mm	700mm	700mm	700mm
Sawing Wood Thickness	10-200mm	10-300mm	10-300mm	10-300mm
Sawing Wood Length	1300-4500mm (Adjustable)
Electric Motor	15KW	18.5KW	22KW	30KW
Up/Down Motor	1.1KW	1.1KW	1.1KW	1.1KW
Band Saw Blade Length	5500mm	6100mm	6600mm	7100mm
Total Weight (KG)	1100KG	1100KG	1300KG	1500KG

Horizontal Band Saw Manual Type:Manual forward/backward, electric button up/down for setting sawing thickness.

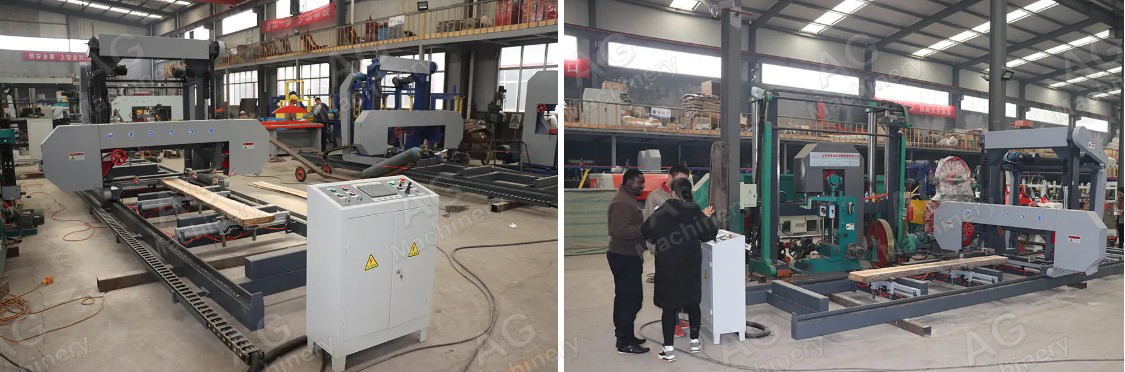

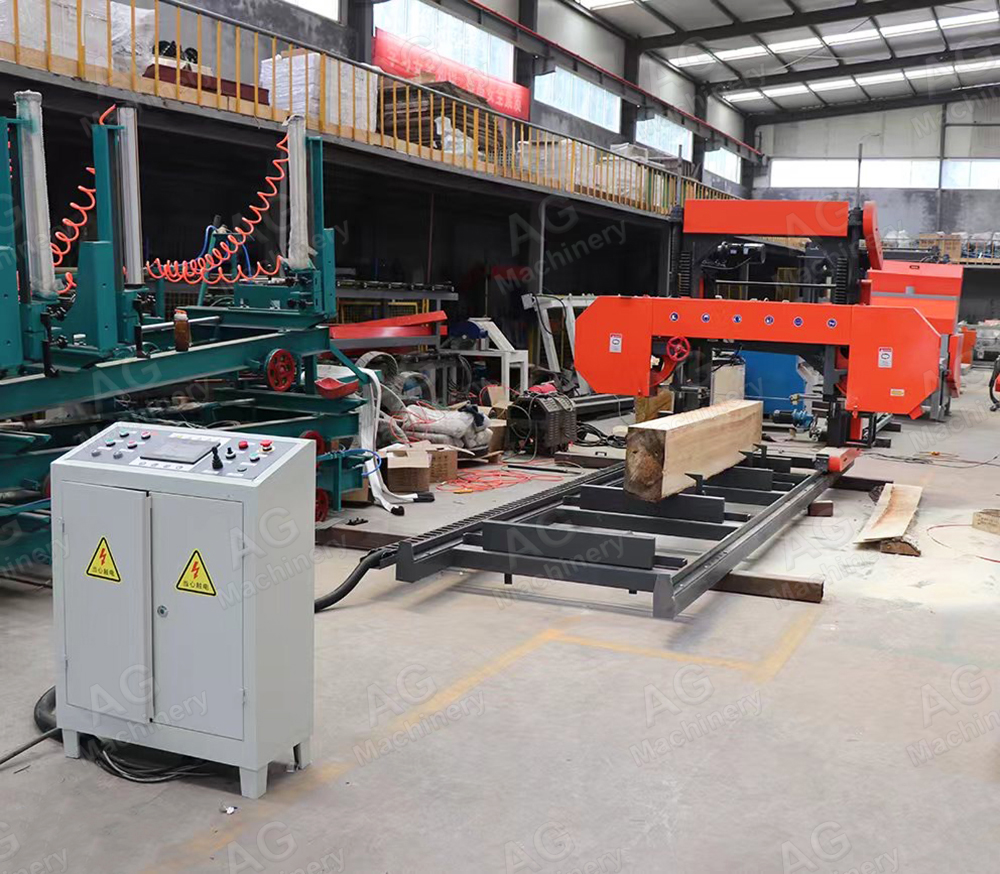

Horizontal Band Saw Automatic Type:Touch Screen CNC Precision Setting Sawing Size-Frequency Conversion Adjust the Sawing Speed.

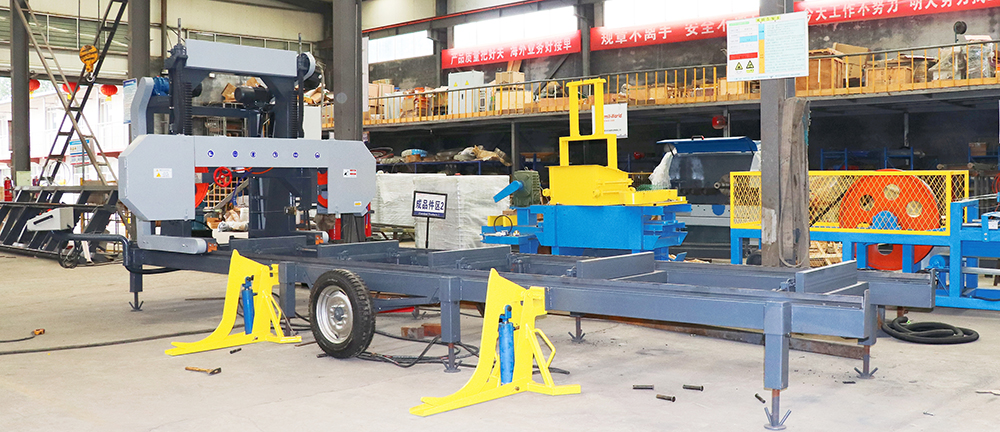

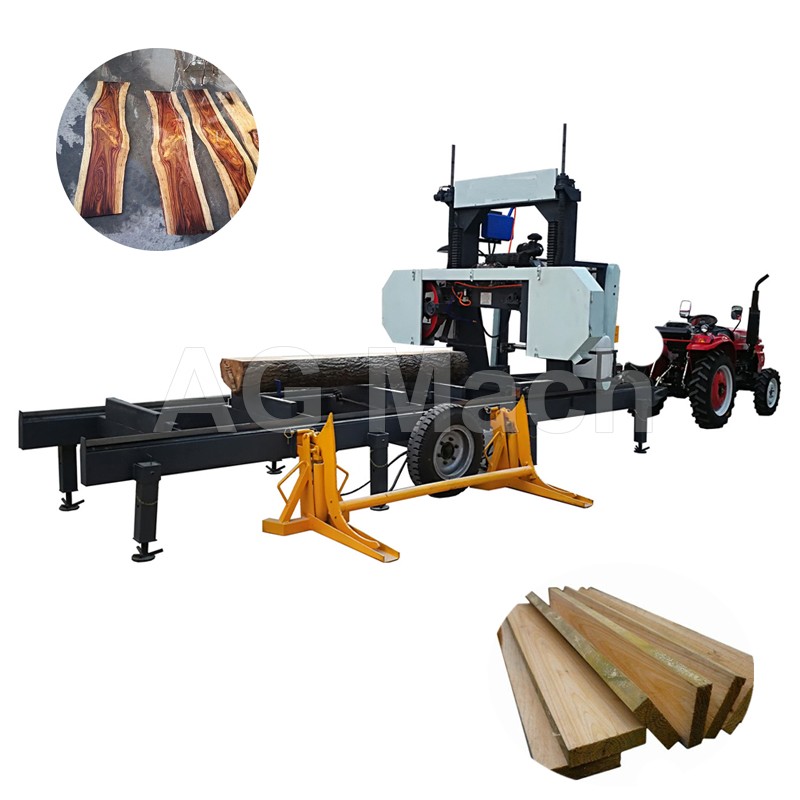

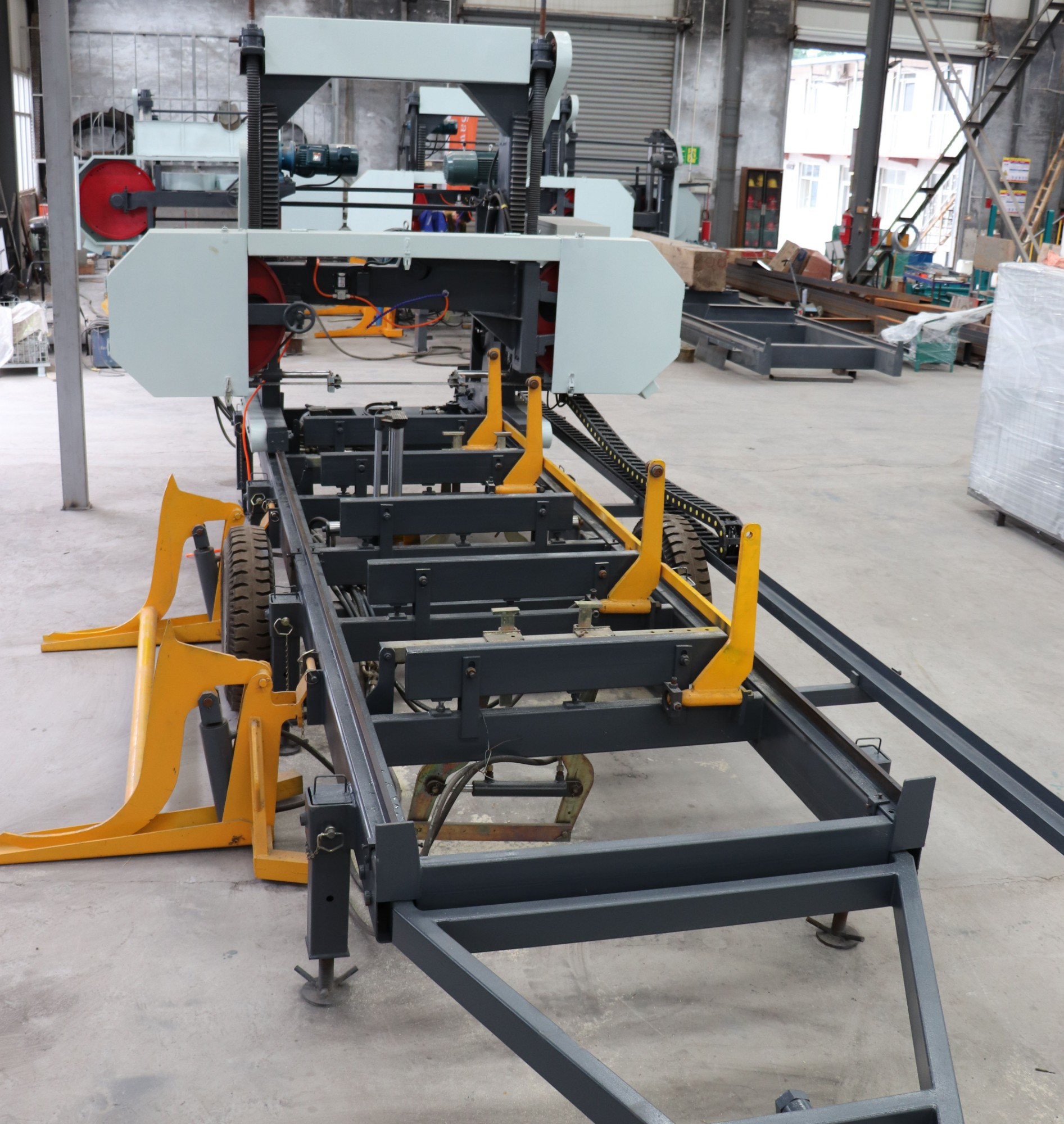

Portable Horizontal Bandsaw with Diesel Engine

Model	MJ700D	MJ1000D	MJ1300D	MJ1600D
Max Sawing Width	700mm	1000mm	1300mm	1600mm
Saw Wheel Diameter	700mm	700mm	700mm	700mm
Sawing Thickness	10-300mm	10-300mm	10-300mm	10-300mm
Sawing Wood Length	1300-4500MM(Rail Length:5800mm)
Engine	22HP	22HP	25HP	27HP
Saw Blade Length	1100KG	6100mm	6600mm	7100mm
Total Weight (KG)	1100KG	1200KG	1300KG	1500KG
Manual Forward/backward,Hydraulic Up/down for setting sawing thickness.

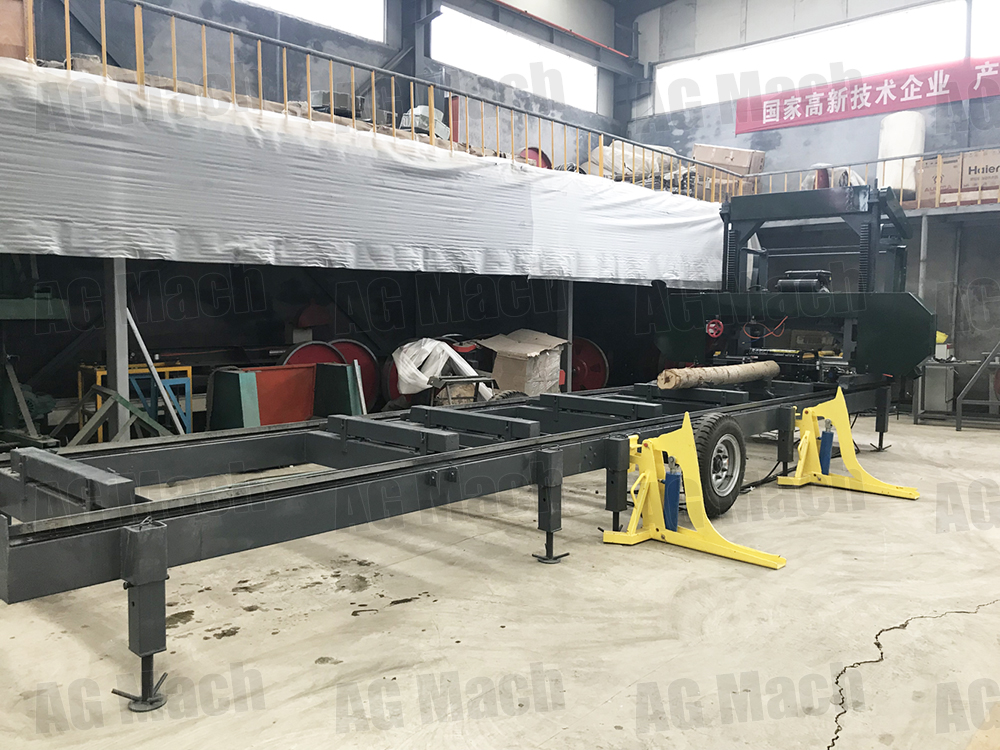

diese sawmill 02.jpg diesel engine driven portable band sawmill.jpg

Feature

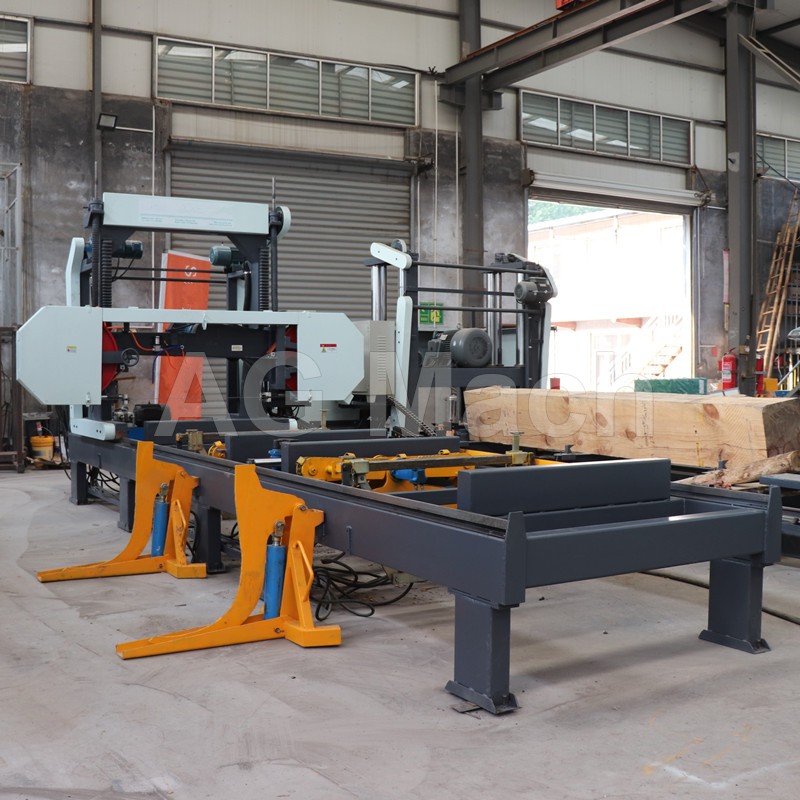

1. Hydraulic wood clamping system, easy to operate
2. Power: electric motor or diesel engine
3. Applicable wood: hardwood,softwood, such as teak, oak,kwila,African rosewood, mahogany etc.
4. Mobile wheels and adjustable legs can also be installed.
5. Installation: easy installing, operation guide will be provided.
5. Labor saving, high production
6. Options: computer touch screen set sawing thickness, adjustable moving
