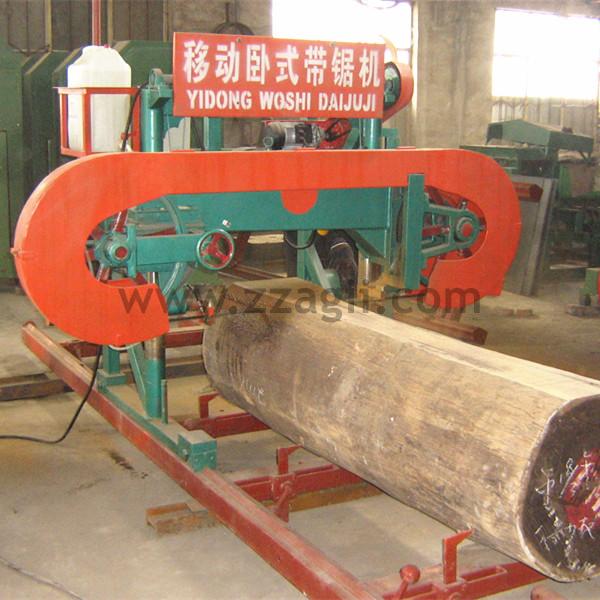

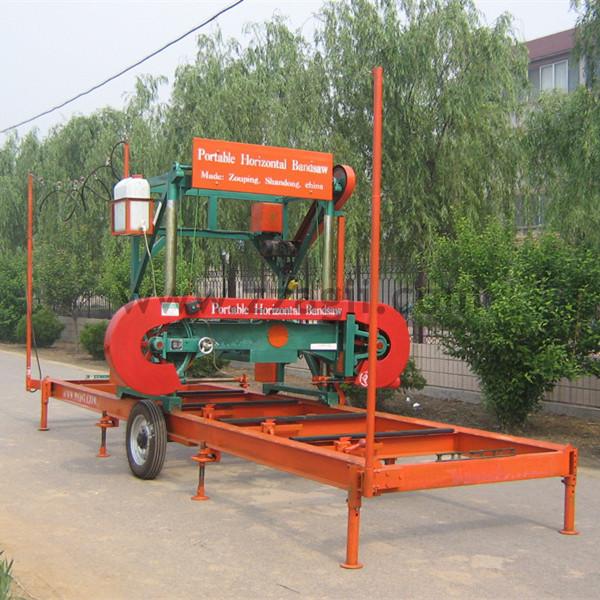

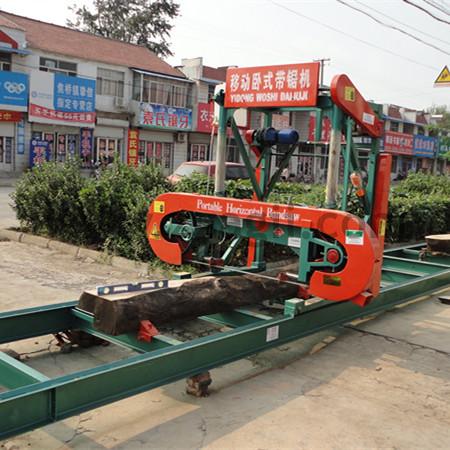

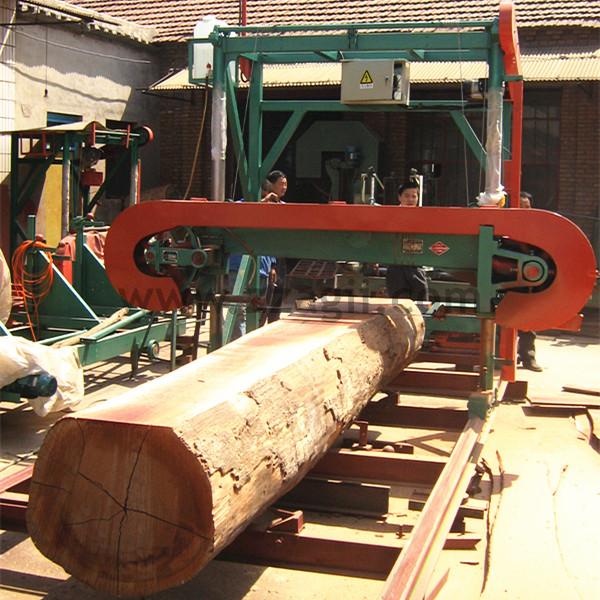

China Portable Large Wood Log Sawmill machine
Horizontal Band Sawmill with Electric Motor or Diesel Engine
- Portable Horizontal Band sawmill are hot selling in Africa and South America.
- It is simple installation, easy operation, labor saving and high productivity.
- This machine can be drove by either electric motor or diesel engine.
- It is widely used by the timber process enterprises in the virgin forests area.
Technical Data:
Model
MJ-700
MJ-1000
MJ-1300
MJ-1700
Max. Wood Diameter
700mm
1000mm
1300mm
1700mm
Saw wheel diameter
600mm
700mm
700mm
700mm
Max. sawing thickness
260mm
300mm
300mm
300mm
Blade speed
20-25m/s
20-25m/s
20-25m/s
20-25m/s
Max. Length of wood
4500mm
4500mm
4500mm
4500mm
Power of electric motor
7.5KW
11KW
15KW
18.5KW
Lifting motor power
1.1KW
1.1KW
1.1KW
1.1KW
Tensioner blade mode
Manual
Hydraulic
Hydraulic
Hydraulic
Rail length
5900mm
5900mm
5900mm
5900mm
Total weight
900KG
1100KG
1300KG
1400KG
