Factory Direct Sale Tree Peeling Machine Eucalyptus Log Debarker for Sale

EMAIL

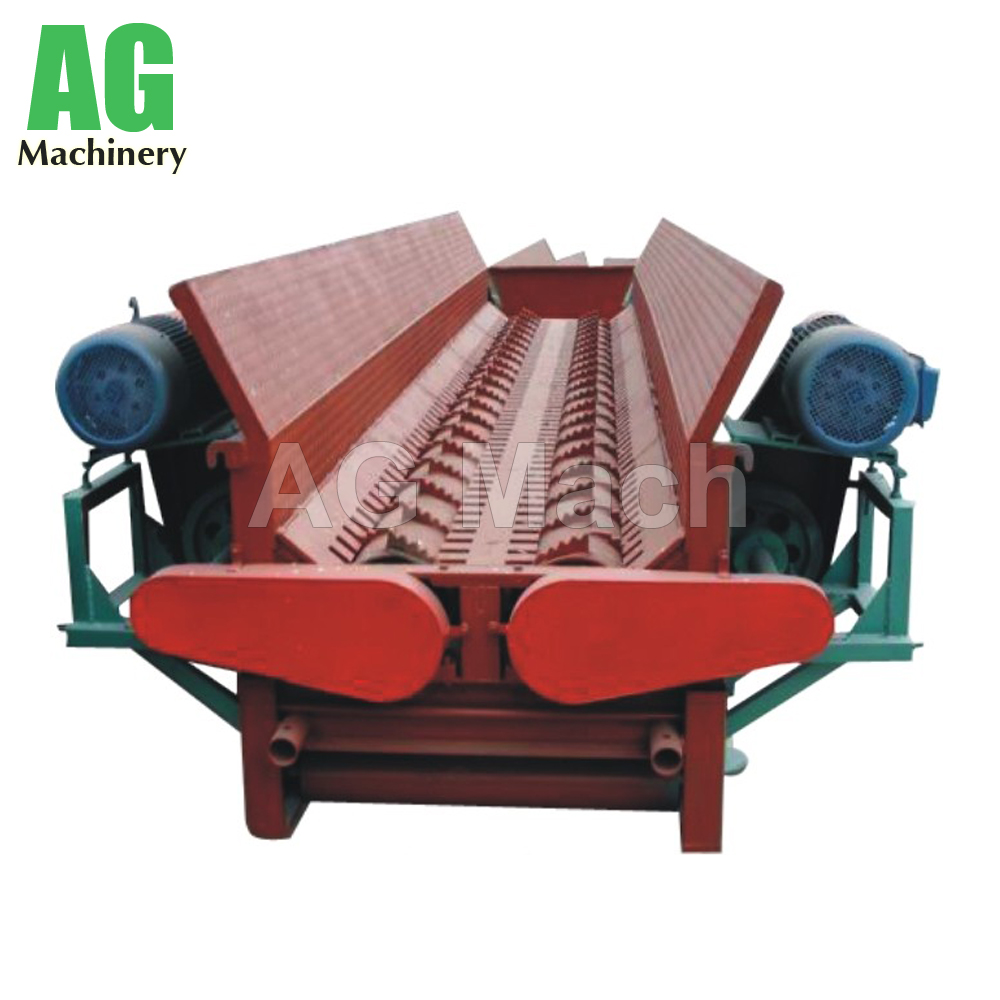

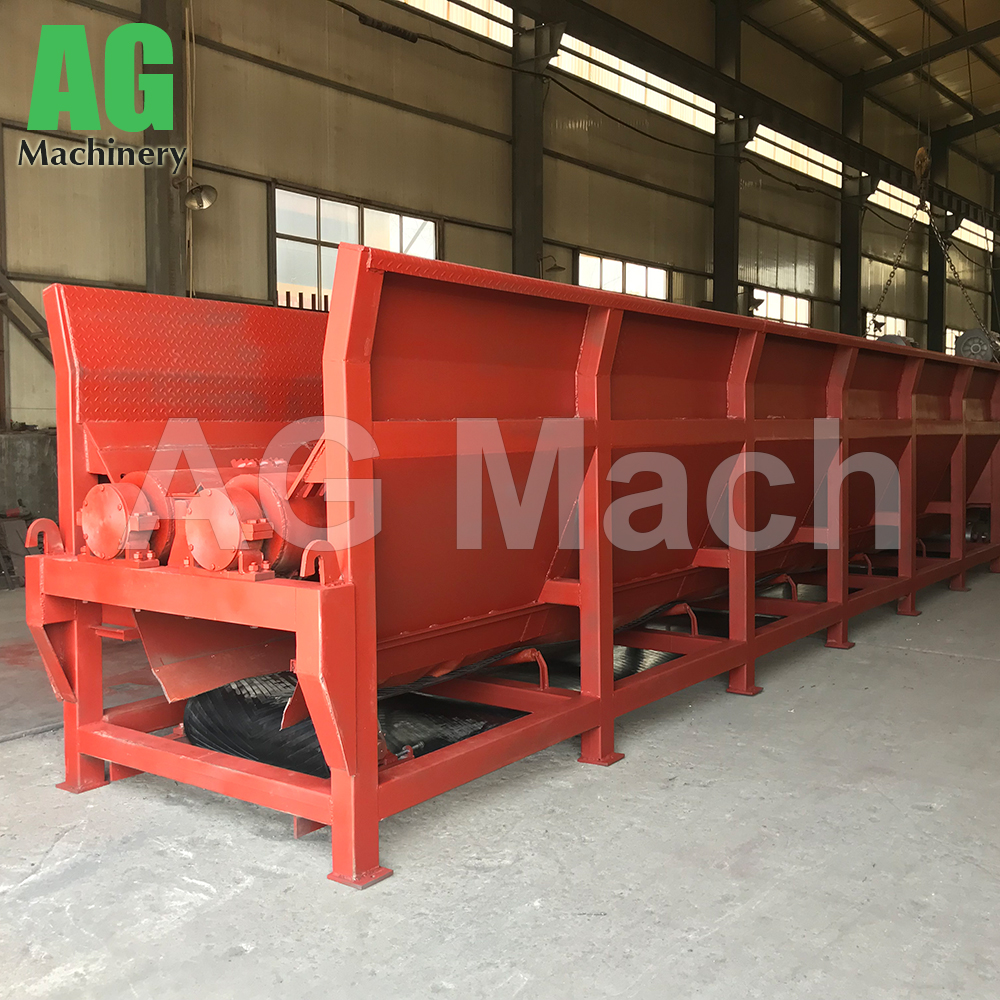

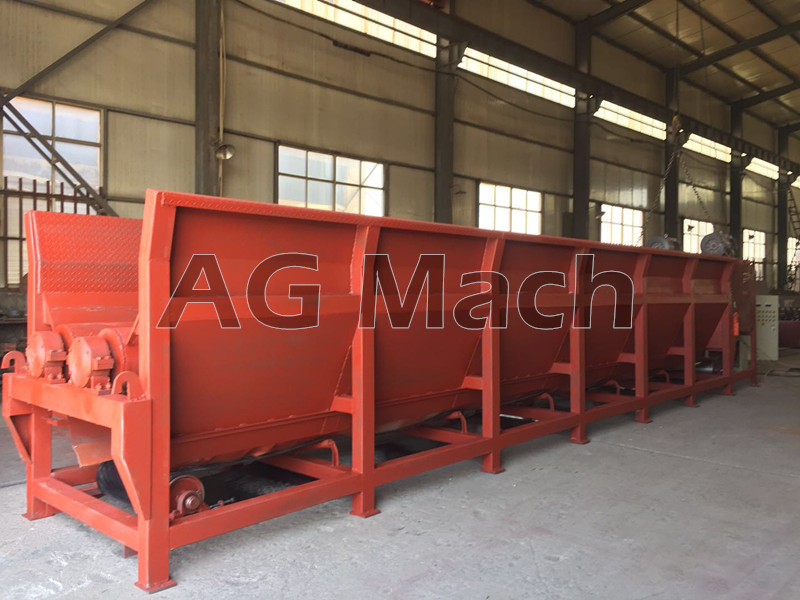

Manufacturer of Wood Peeling Machine,  Timber Wood Log Debarking Line


Features:

1.  Adopt opened groove hopper, which makes one end for feeding, and the other end for discharging, which greatly improves work efficiency.

2.  As the teeth impact the timber section, the logs section is rotating around itself and cycle moving with high efficiency, so it has a better net rate of striping.
3.  It is available for many kinds of tree species, diameter, length and shape.
4.  The net rate of peeling logs bending is much higher.
5.  It with lower consumption, low failure rate and little maintenance workload.

Technical Data of Wood Debarker:
Model Roller Q'ty Power Output Max Log
Diameter
Peeling Rate Weight
Z-600D Double 11+11+2.2 kw 6-8 t/h 300mm >95% 4800kg
Z-700D Double 18.5+18.5+3 kw 10-15 t/h 350mm >95% 6200kg
Z 800D Double 18.5+18.5+3 kw 15-18 t/h 400mm >95% 8200kg
Z 900D Double 22+22+3 kw 18-20 t/h 400mm >95% 9300kg


Work Principle of Log Debarker:


Wood barking machine is new generation wood peeling equipment with high efficiency which was innovated by our factory on the basis of foreign advanced technology. It had single and double roller type according to different wood with different diameter.

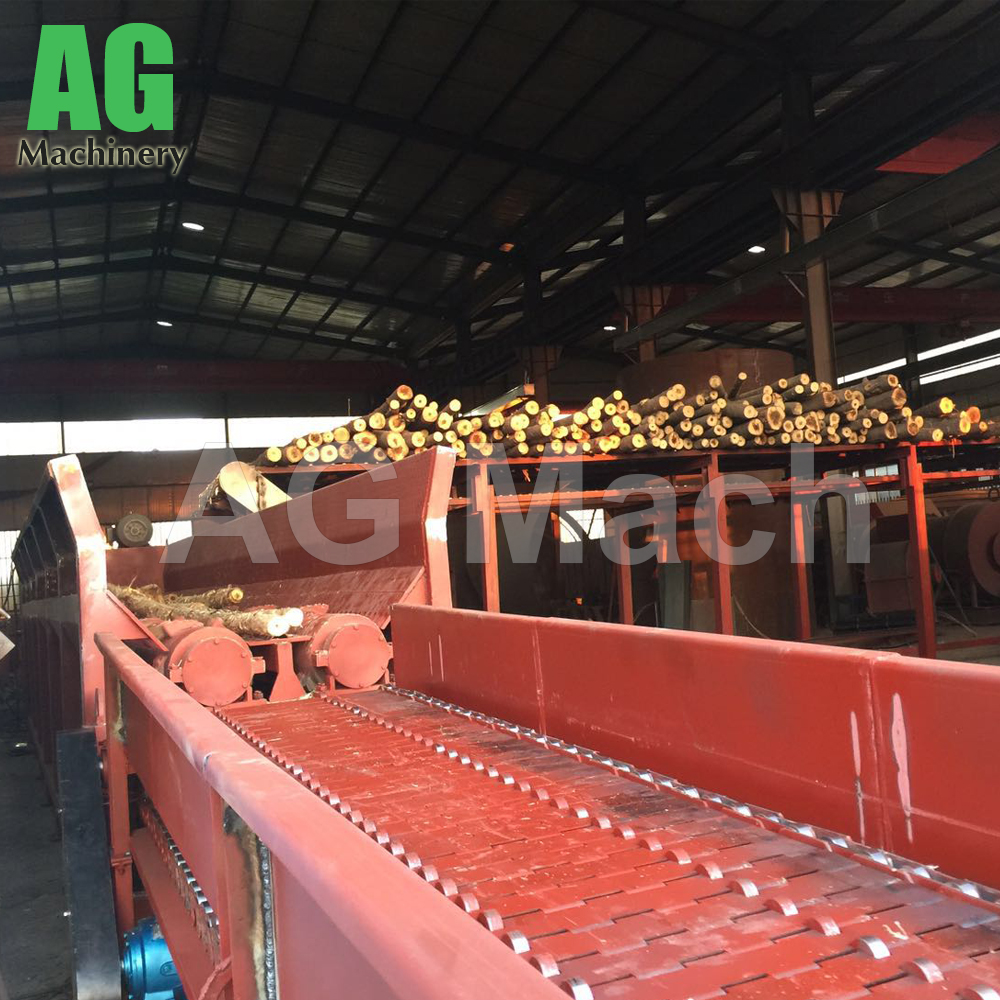

This tree stripping machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size. So it is continuous working. It conquers the defect of rolling drum and improves capacity greatly. It is suitable for big diameter wood and large scale factory.

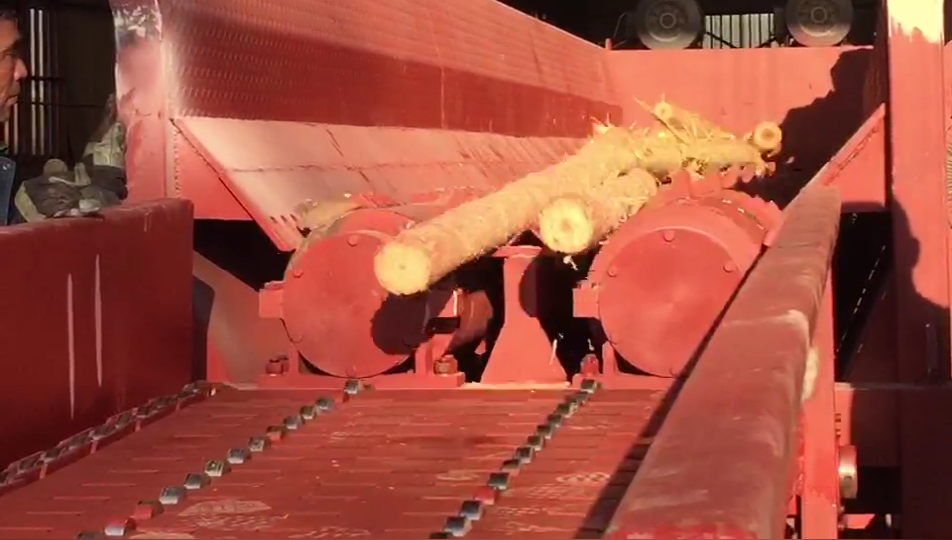

The tree debarking machine uses special force to let the wood doing circle movement in the hopper tank plate, and also around its own axis to do turning motion segment and irregular beating. The force is caused by the rotor which is with ladder type peel teeth. So that wood and teeth, wood and wood, wood and hopper tank,pectin friction, strike, extrude and peel off ceaselessly, Lead to bark and tree trunks are broken down and stripped fast, So as to achieve the effect of stripping efficiency.

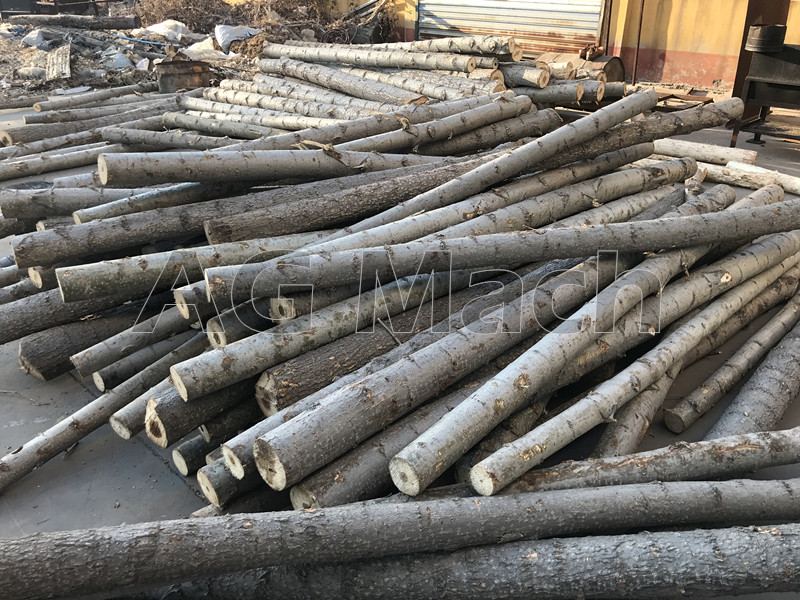

BEFORE DEBARKING:

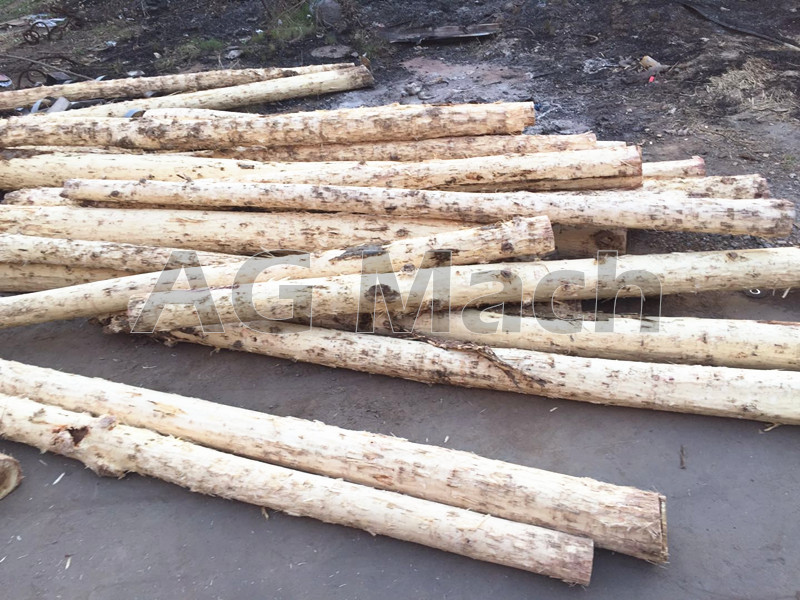

AFTER DEBARKING:



Application scope:
Wood debarking machine is suitable for large,medium and small paper mills,pulp mill,wood factory,
wood processing plant, forestry factory, timber yard,artificial board factory (such as plywood plant, medium density fiberboard factory etc.
