Horizontal wood shavings mill machine for horse chicken bedding

Horizontal wood shavings processing mill machine for horse chicken bedding

WBH-500-4 Wood Shaving Machine.jpg

Description of Wood Shaving Mill:

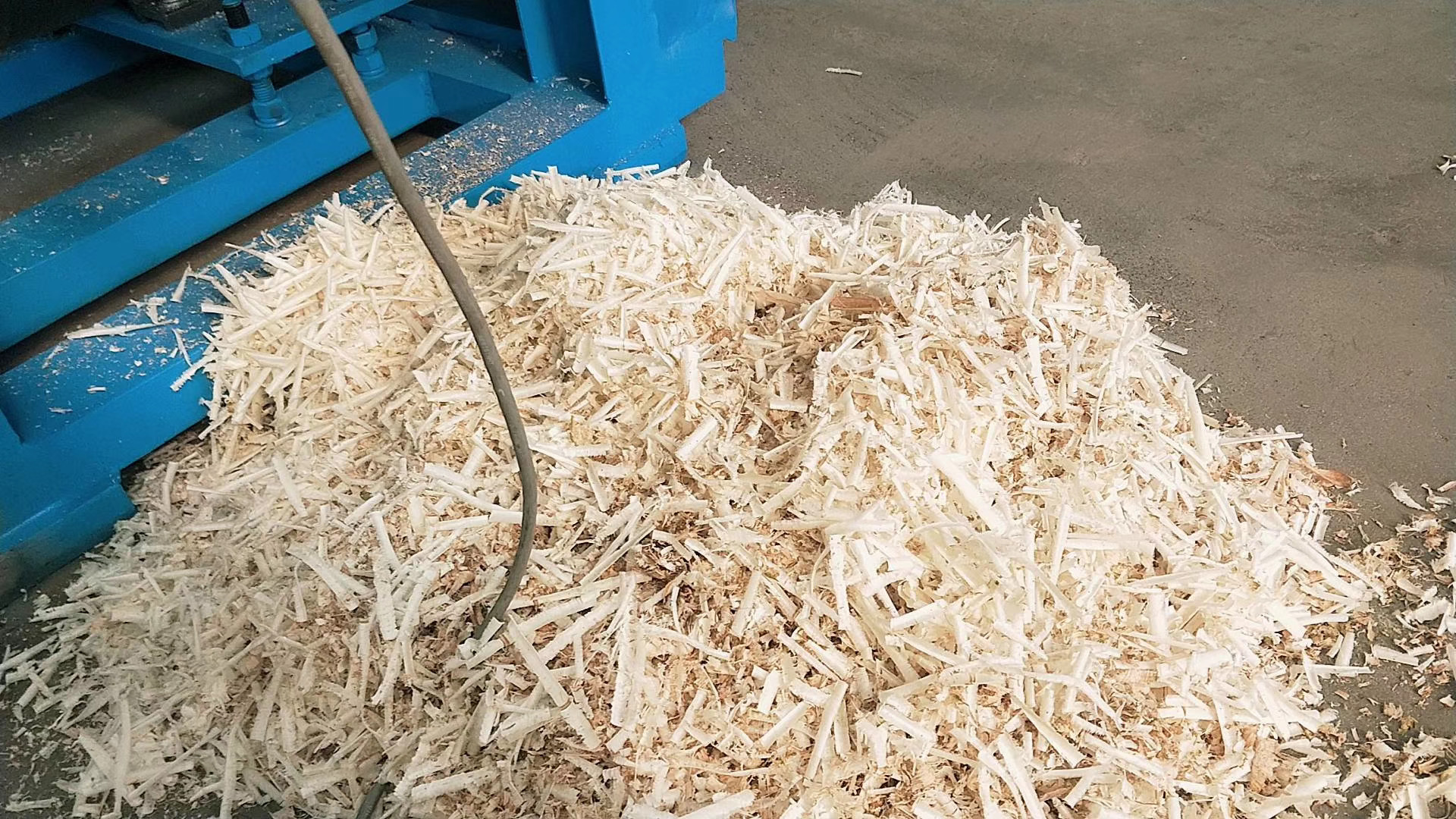

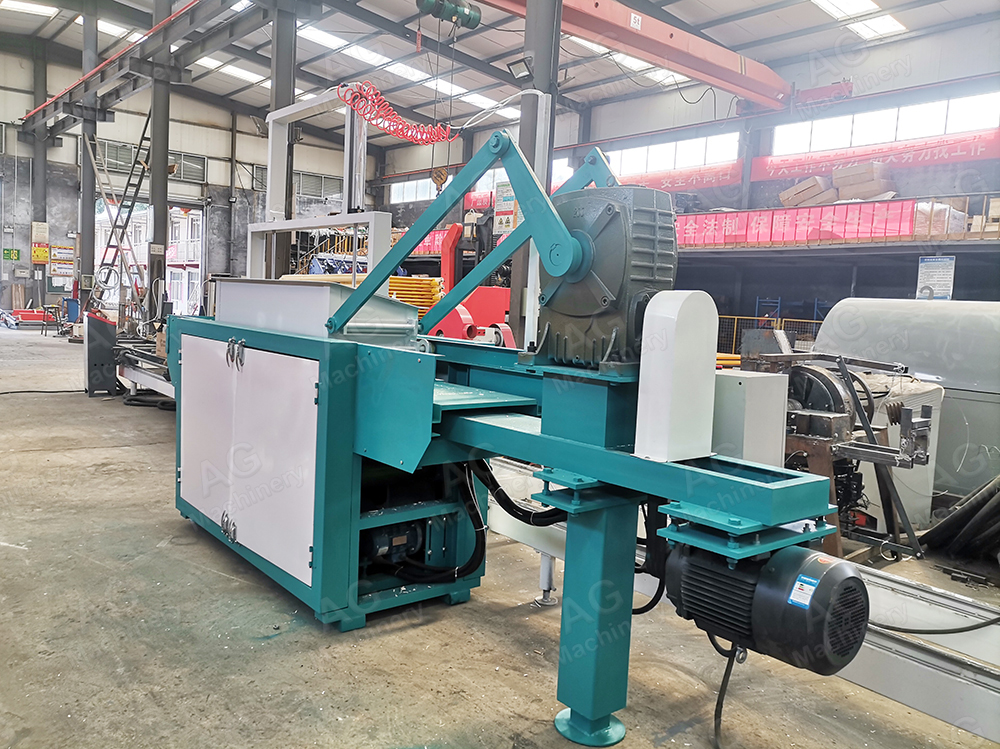

This horizontal wood shaving machine is designed to produce wood shavings in desired and suitable size as you need.

It can process logs and various types of wood into wood shavings of various sizes. The high-quality wood shavings processed by the wood shaving mill can be used for animal bedding, such as chickens, pigs, various pets and horse breeding sectors.

The size and thickness of wood shavings can be adjusted according to user needs.

Specification of Wood Shaving Machine:

Wood Shaving Machine
Model	WBH 500-2	WBH 500-4	WBH 500-6
Max Length of Wood	800mm	1400mm	1400mm
Max Width of Wood	500mm	500mm	500mm
Speed	3500 r/min	3500 r/min	3500 r/min
Production Capacity (Fresh Wood)	500 kg/hour	1000 kg/hour	1500 kg/hour
Total Power	10.5KW	23.25KW	30.75KW
Axle Quantity	2 pcs	4 pcs	6 pcs
Blade Quantity	8 pcs	16 pcs	24 pcs
Hopper Length	800 mm	1400 mm	1400 mm
Width of Wood Shaving	0.2-1 mm	0.2-1 mm	0.2-1 mm
Driving Mode	Electric or Diesel
