Product Application
This series of mixing machines can be uniformly mixed with feed, grain and other powdery or granular materials.
It can also be used in dry powder, coating, putty, heat preservation mortar, dry powder drilling mixture,
and all kinds of cellulose and dry powder chemical mixing.

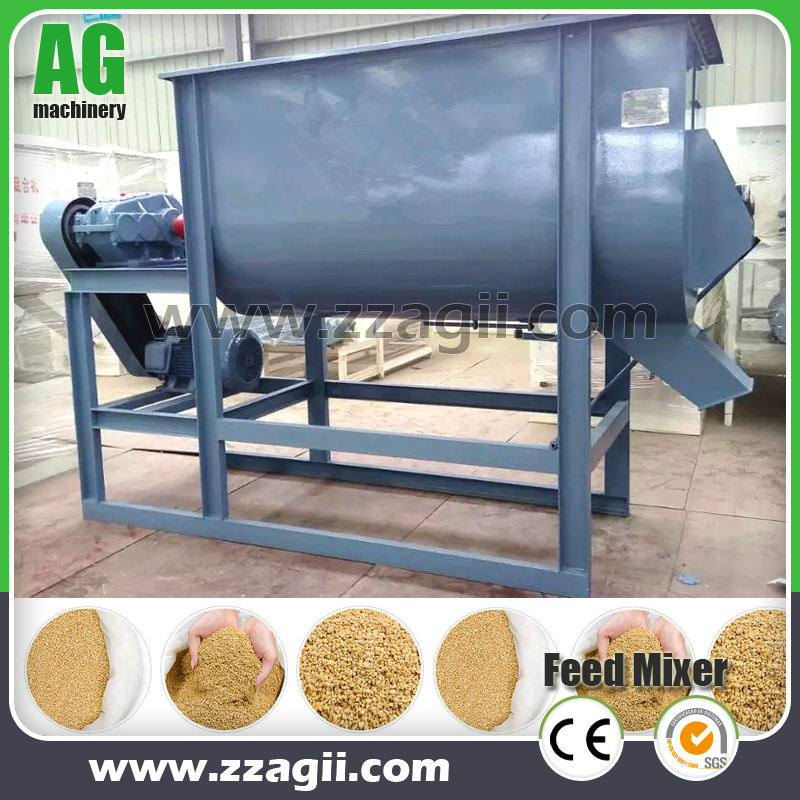

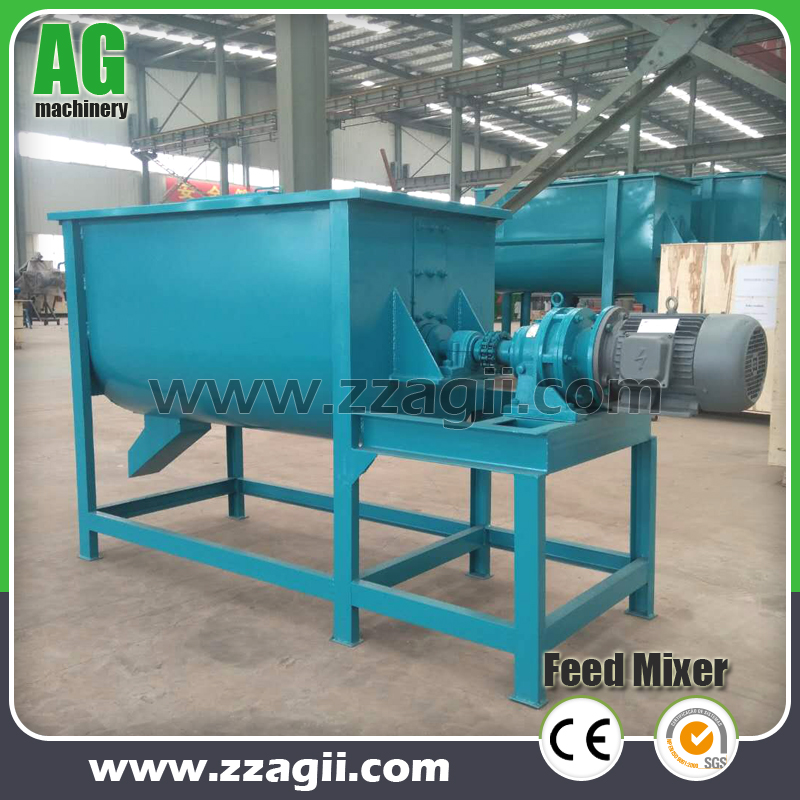

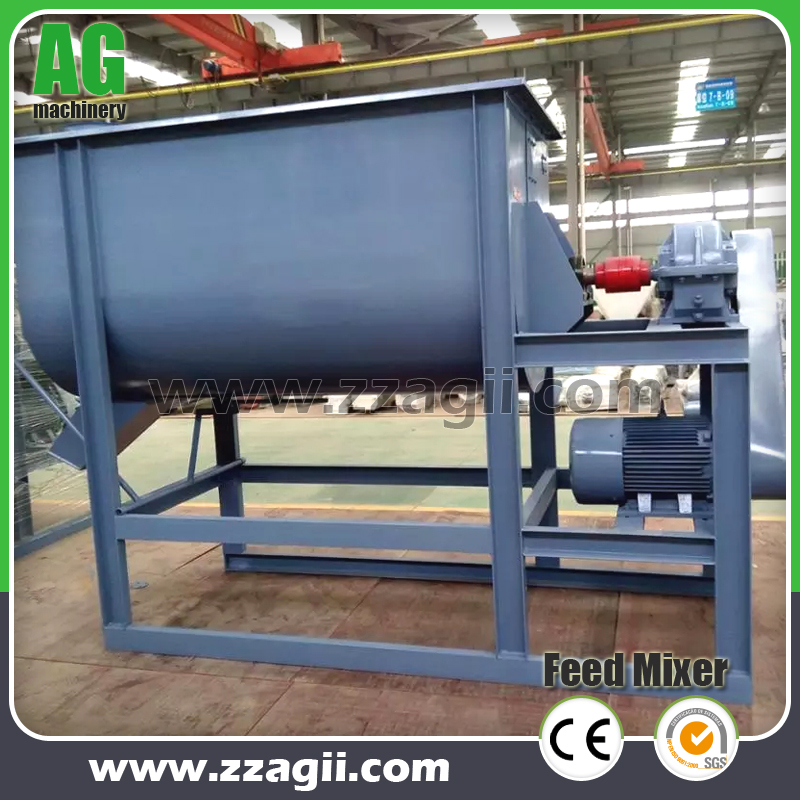

Main Features
1). The Mixer can be configured more than one spray nozzle; the liquid can be added easily.
2).Smooth transmission, wear and tear; carbon steel, stainless steel, composites and other body is optional.
3).The U type horizontal mixer adopted the advanced technology, quality material, rational structure, good performance.
4).The discharging door is under the machine, so it's convenient to discharge.The machine has no residue for its special discharging way.
Technical Data
Model
Capacity
Processing time
Mixer Power
Dimension
Weight
WS-250
100-250 KG/Batch
6-10(minutes)
7.5KW
2.20*0.70*1.25 (m)
215kg
WS-500
300-500 KG/Batch
8-15(minutes)
7.5KW
2.90*0.95*2.00 (m)
950kg
WS-1000
700-1000 KG/Batch
8-15(minutes)
15KW
3.10*1.10*2.07 (m)
1100kg
Advantage
1>.Drive with gear box with high efficiency;
2>.Extended stainless steel conditioner with long conditioning and cooking time;
3>.The bearings and oil seal at the main drive are imported, lubrication of bearing assured by reliable oil return;
4>.we can equip the machine with ordinary modulator,thermal insulation case modulator or double-shaft differential;
5>.modulator according to client's requirement.
pre-sale service:
1) Reply customer's email or call customer back in 3 hours if missed any calls.
2) Design the best processes and programs according to customer's usage and requirement.
3) Answer customer's questions patiently.
On purchase service :
1) Commissioning the machines before shipment carefully.
2) Train the customer's technician,And provide operation video and matters needing attention
3) Arrange customs declaration, sea shipping, insurance, etc.
After-sales service :
1) Out machines' warranty period is 12 month, We will provided spare parts for free
within 12 month,But will need customer bear the delivery cost.We charge cost price and delivery cost after the warranty period.
2) Provide the solution of the installation or use problem within 3 working hours.
3) Engineers able to install and train the operators overseas.
