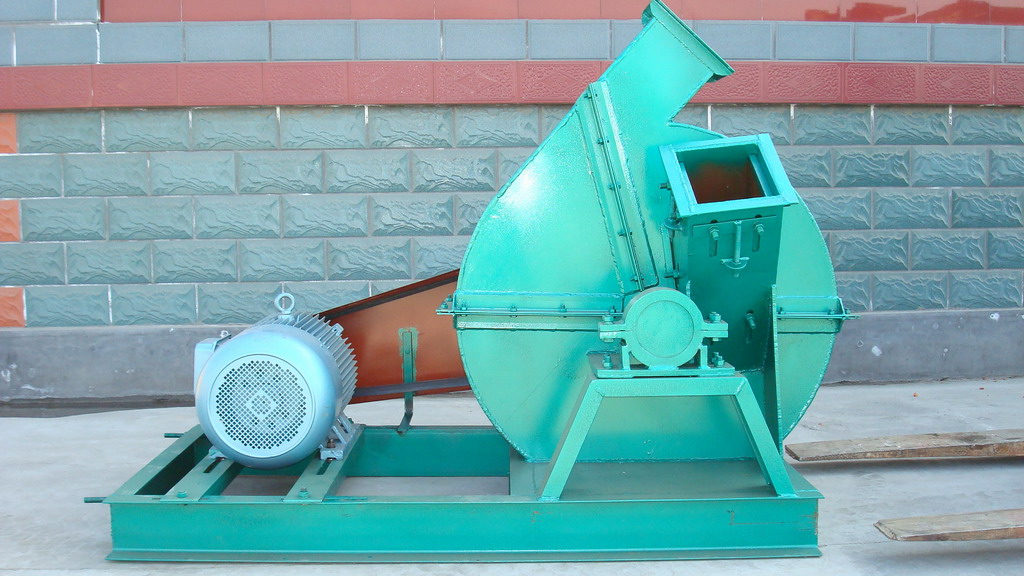

disk type electric wood chipper shredder machine

Application of wood chipper

It is widely used in textile, papermaking, particle board, fiber board manufacturing industrial, etc.

Raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber stalk, the length of chips can be adjusted in a certain range as needed.

Technical Parameters:

Model	knife disc Dia (mm)	knife Qty (pcs)	Capacity (t/h)	Input opener (mm)	Input Dia (mm)	Chips size (mm)	Power (kw)
BX-600	600	3	1-3	150*140	130	20-35	22
BX-800	800	4	3-6	170*160	150	20-35	37
BX-950	950	6	8-12	220*210	200	25-35	55
BX-1200	1200	6	12-18	350*250	250	25-40	90
BX-1400	1400	6	20-30	460*350	300	25-40	110
BX-1600	1600	6	30-40	540*380	350	30-45	160
