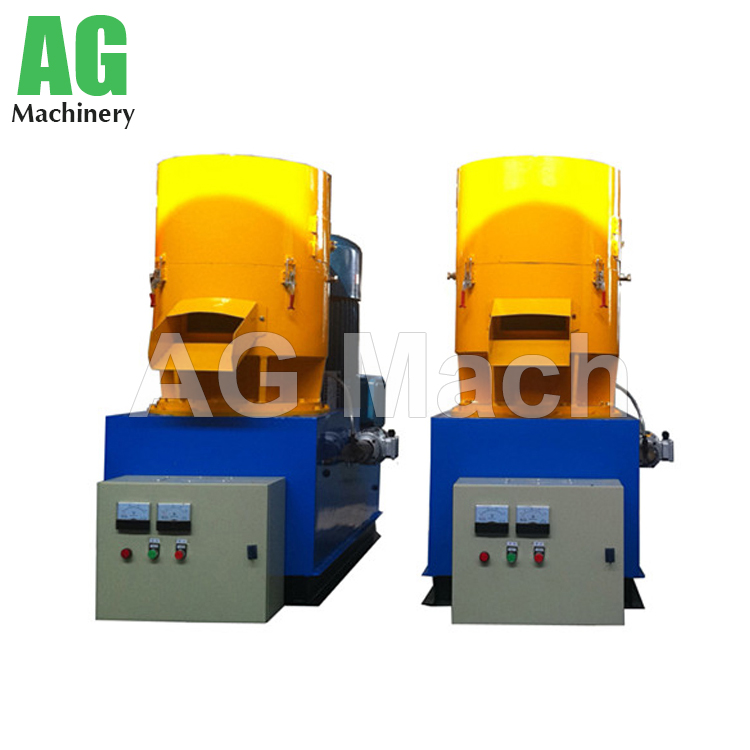

KAF 450 Automatic wood pellet mill agricultural waste flat die sawdust pellet machine

KAF 450 Automatic wood pellet mill agricultural waste flat die sawdust pellet machine

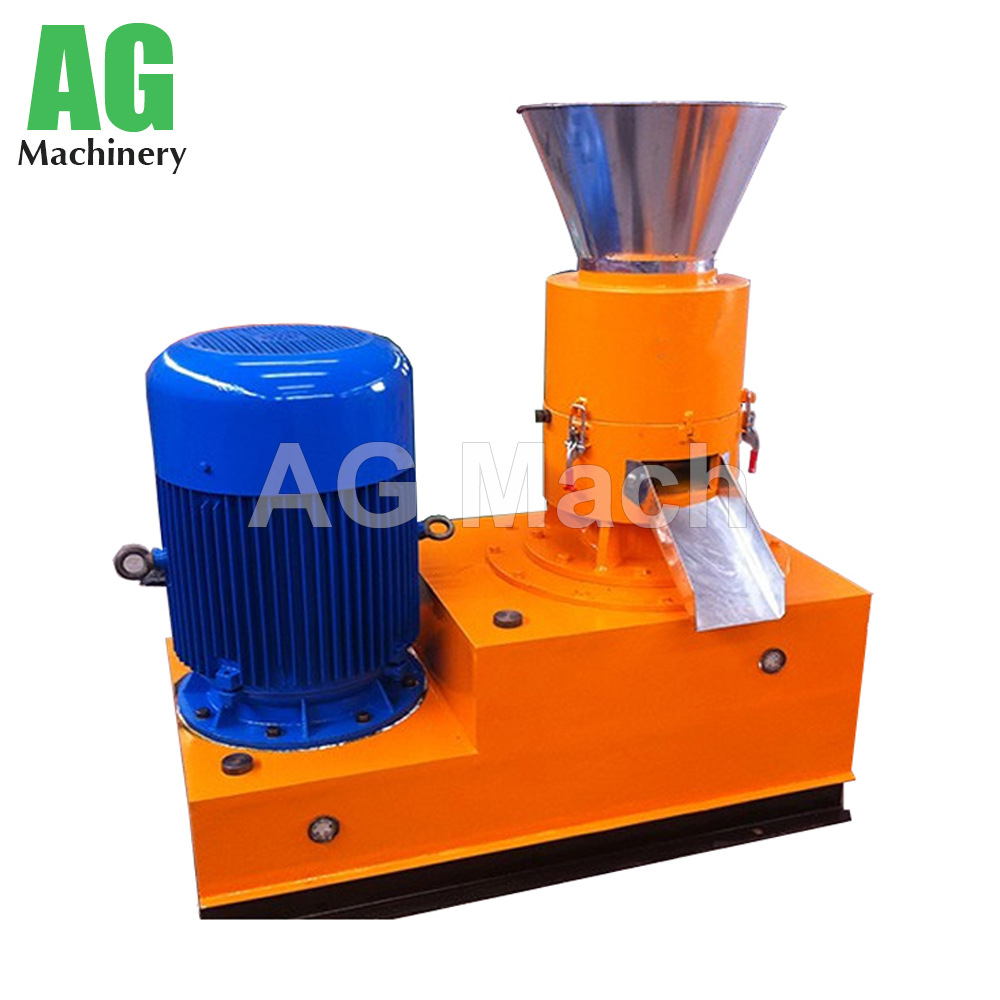

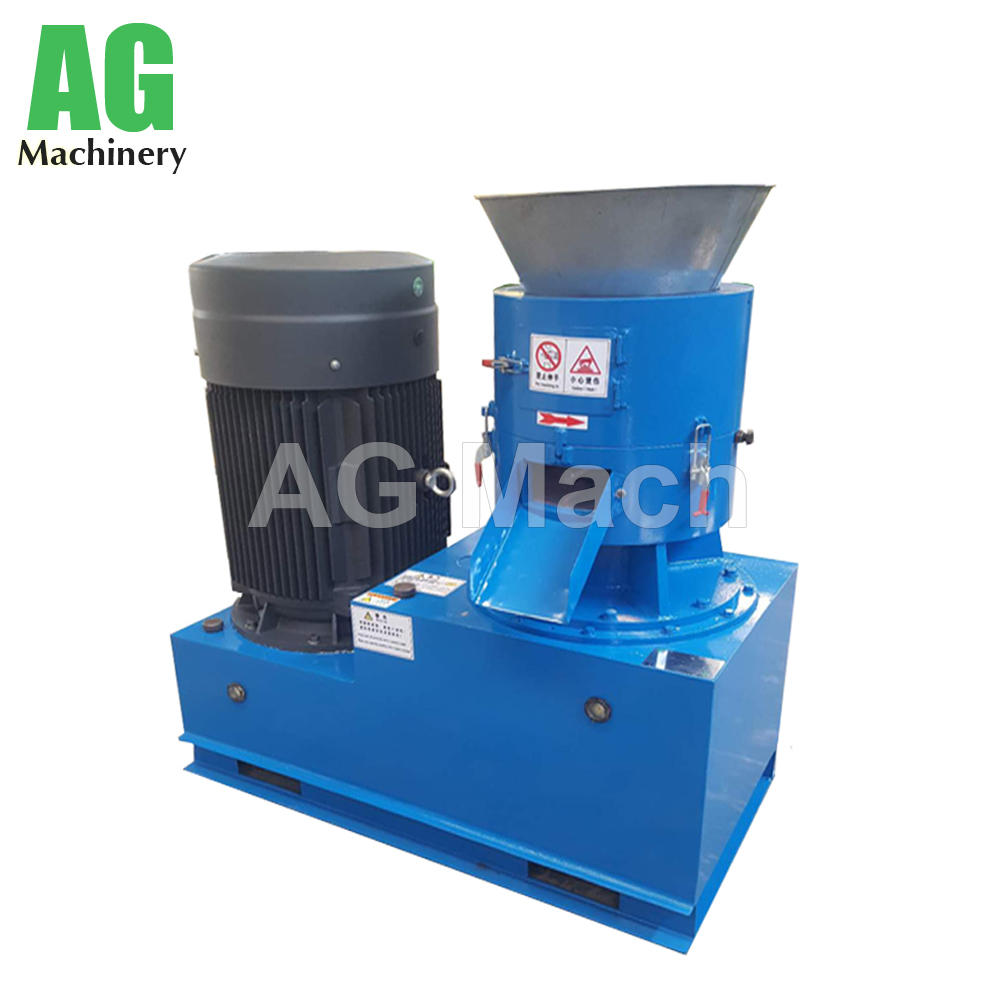

KAF-450 Screw feeder Flat Die Sawdust Pellet Machine

Introduction of biomass pellet mill:

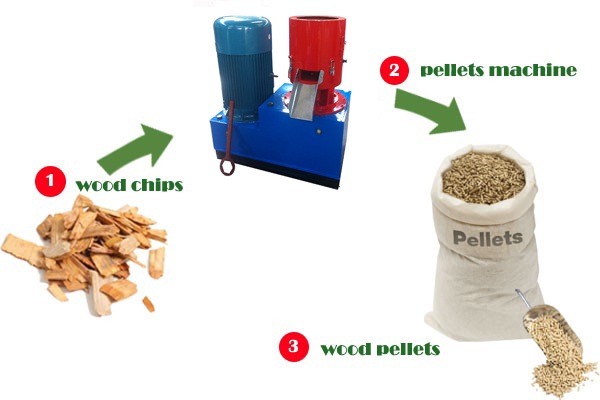

It's a new generation of energy-saving pelletizing equipment, which is mainly used to compress crushed biomass wastes, wheat straw, agro waste, bamboo powder, grass, rice husk and wood chips etc. into cylindrical and square shape particles.

It adopts bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.

The finished pellets are smooth in surface and shapely in posture. Its hardness is closely to European standard. Pellet fuel is convenient in the process of manufacturing, packing, storing and transporting as a clean renewable energy.

Parameter of Flat Die Biomass Pellet Machine:

Model	Capacity (kg/h)	Motor (kw)	Pellet Size (mm)	Pellet density (g/m³)	Dimension (m)	Weight (kg)
KAF-200	100-150	7.5	6,8,10	1.1-1.4	1* 0.45* 0.8	320
KAF-250	150-200	15		1.1-1.4	1.2* 0.6* 1.3	350
KAF-300	200-300	22		1.1-1.4	1.3* 0.6* 1.3	560
KAF-350	350-450	30		1.1-1.4	1.4* 0.8* 1.2	880
KAF-450	400-600	45		1.1-1.4	1.8* 1* 1.65	1300
