Multifunctional pine wood shavings machine pultry bedding wood shaving machine

Multifunctional pine wood shavings machine pultry bedding wood shaving machine

Description:

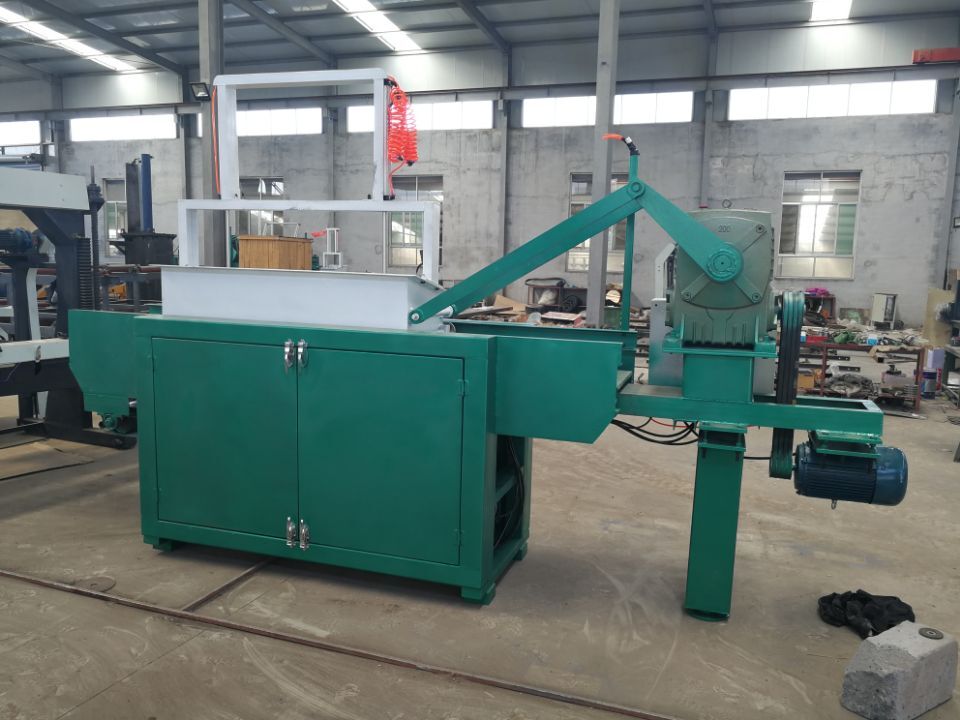

This horizontal type wood shaving machine is designed to produce wood shavings

in desired and suitable size applicable for to animal bedding for chicken farming

and horse breeding sectors.Raw Materials can be logs, Tree Branches, Boards, and Old Pallet etc.

Feature

1. Advanced technology, accurate punching and embed method which avoid loosing in production

2. Hydraulic Transmission, stable performance and low easy daily maintenance

3. Widely application, this type wood shaving mill can produce wood shavings with small volume and

light weight which caEasy replacement of spare parts and daily maintenance n be used in animal bedding, paper mill, transportation filler etc.

Technical Data

Horizontal Wood Shaving Machine
Model	WBH 500-2	WBH 500-4	WBH 500-6
Max Length of Wood	800mm	1400mm	1400mm
Max Width of Wood	500mm	500mm	500mm
Speed	3500 r/min	3500 r/min	3500 r/min
Production Capacity (Fresh Wood)	500 kg/hour	1000 kg/hour	1500 kg/hour
Total Power	10.5KW	23.25KW	30.75KW
Axle Quantity	2 pcs	4 pcs	6 pcs
Blade Quantity	8 pcs	16 pcs	24 pcs
Hopper Length	800 mm	1400 mm	1400 mm
Width of Wood Shaving	0.2-1 mm	0.2-1 mm	0.2-1 mm

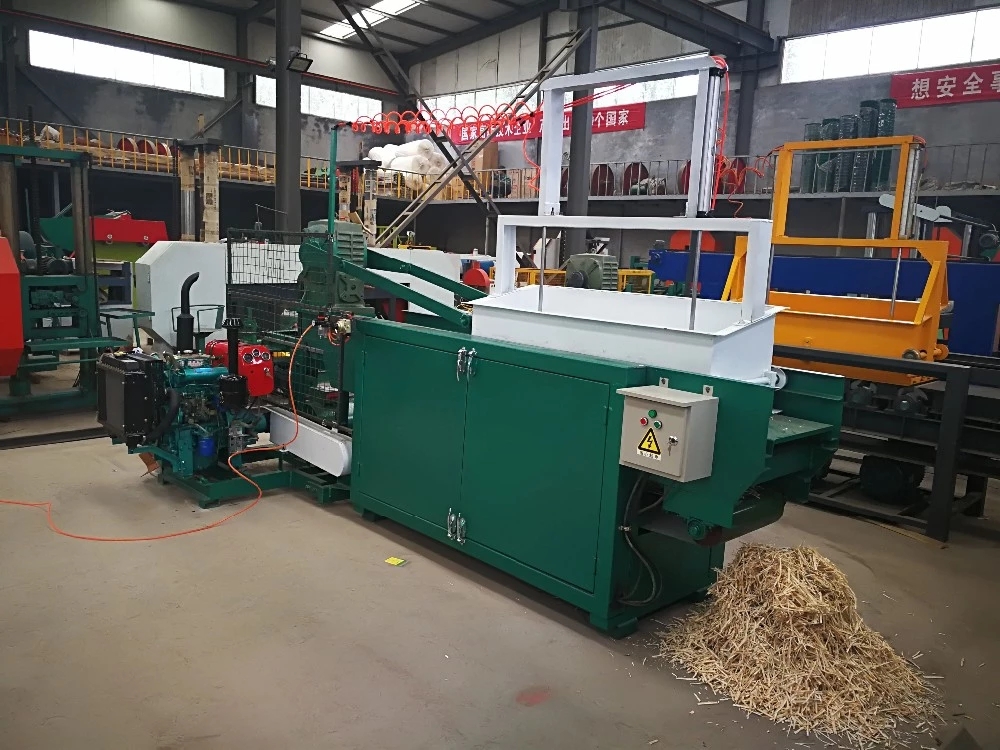

Driving Mode	Electric or Diesel

Application

Wood shaving machine can process wood logs, branch, wood leftover materials etc into shavings with different size. The final shavings are widely

used in many fields like Shaving board in cabinet making factory, wood pulp in paper mill, and protective filler for the fragile cargo in transportation,

animal bedding in hennery. Etc.

Wood shavings
