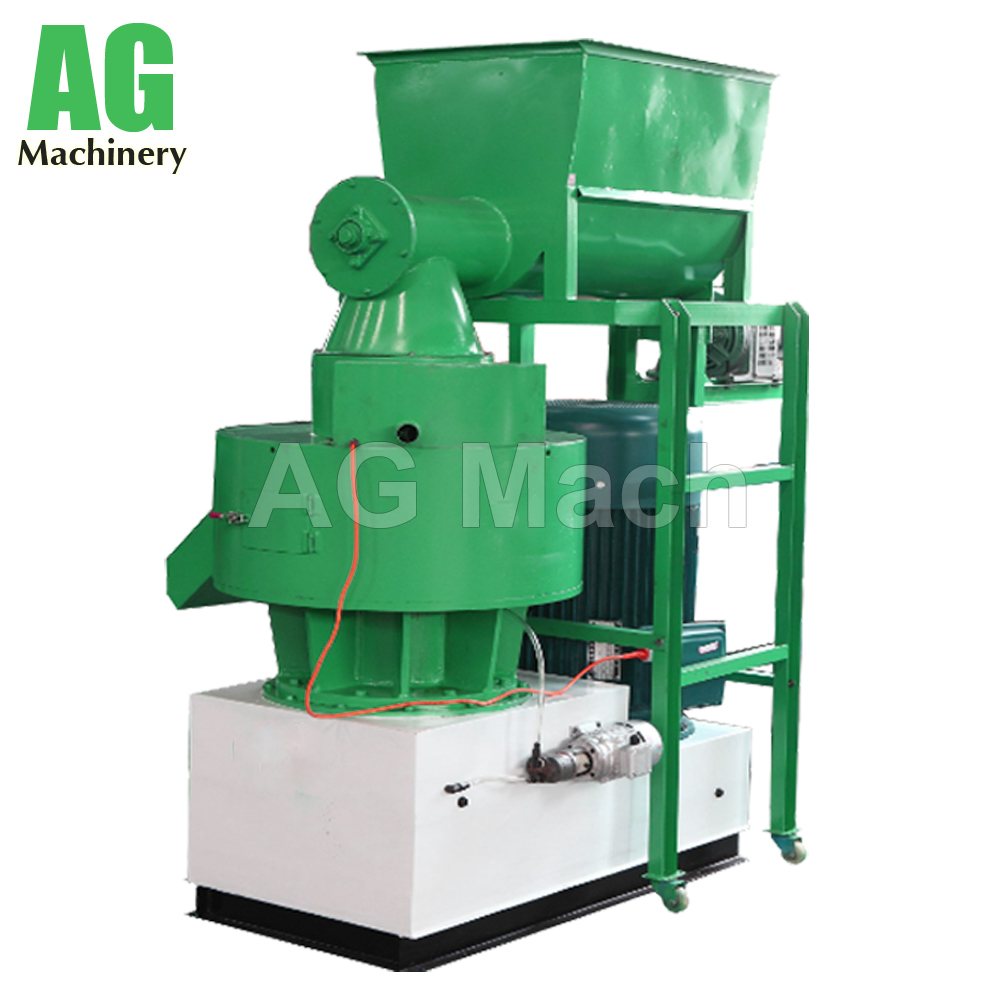

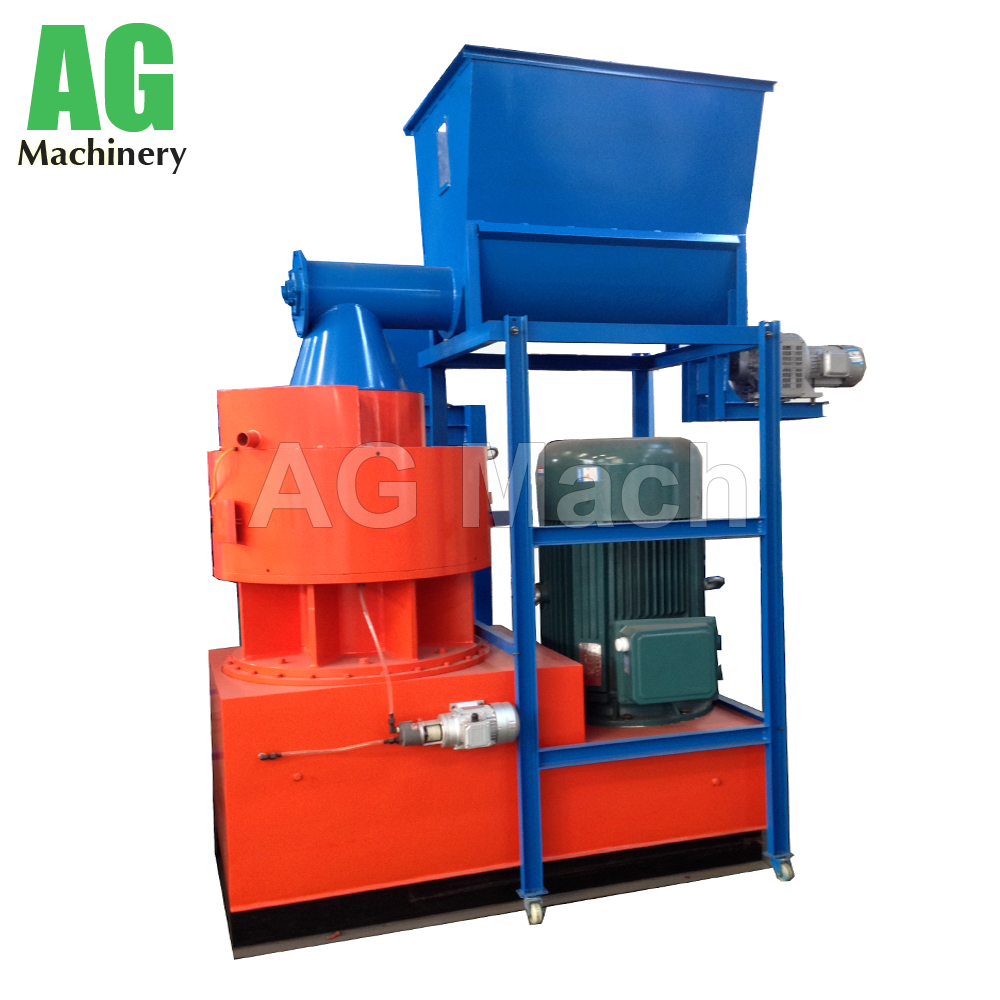

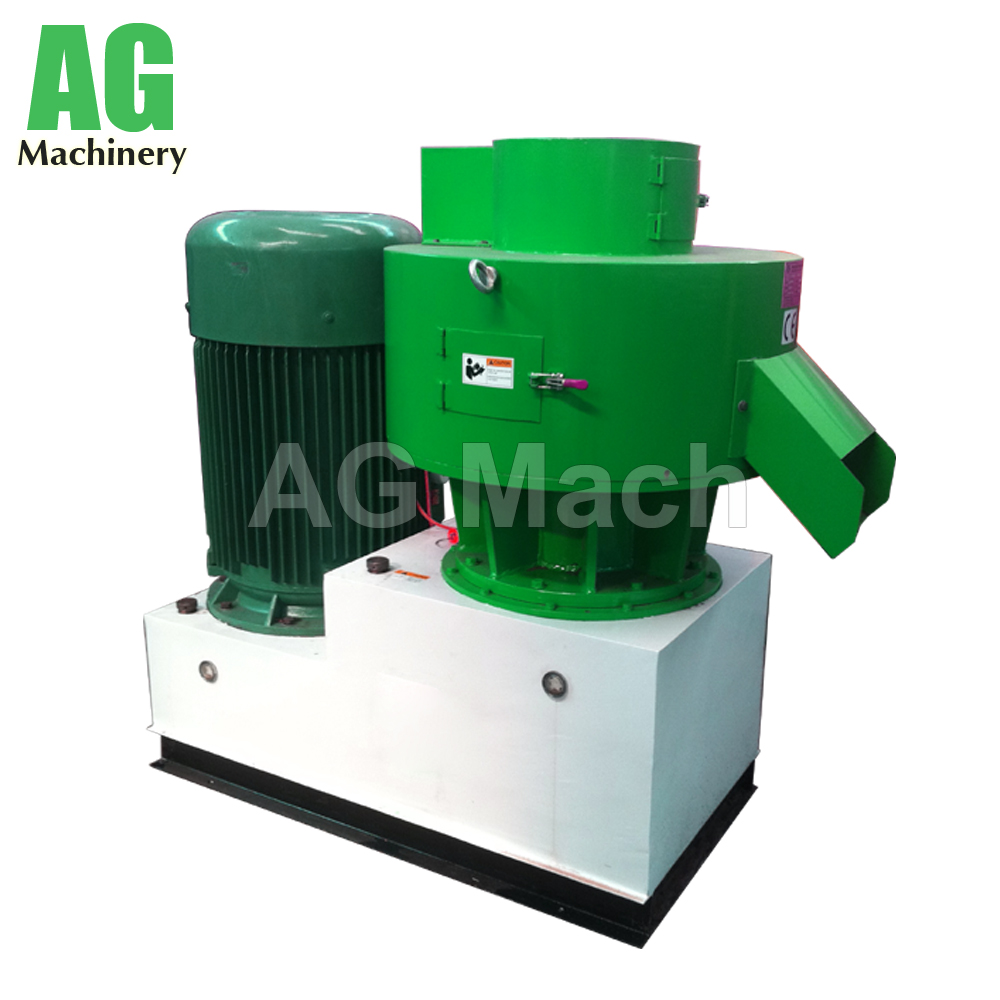

1000kg/h Large Capacity Vertical Ring Die Wood Pellet Press Machine

  • Product ID:1024247
  • weight:412.00g
  • Shooting Angle:130
  • Shelf time:2013-12-20 11:07:19
  • Product description:This type of vertical ring die wood pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pres
  • INQUIRY

Centrifugal Vertical ring die biomass pellet machine, wood pellet mill



Features of Ring Die Wood Pellet Mill:


  • Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period
  • Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working
  • Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam
  • Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is “vertical double-deck” structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.



Technical Parameters:

Model

Power

Capacity

Pellet Size

Dimension

Weight

(kw)

(t/h)

(mm)

(m)

(kg)

450 MX

55KW

0.8-1.2T

6, 8, 10

1.4*0.75*1.55

2200

550 MX

90KW

1.5-2T

6, 8, 10

1.9*0.95*1.8

4000

800 MX

160KW

2-3T

6, 8, 10

2.5*1.35*2.1

6500

1000 MX

200KW

3-4T

6, 8, 10

2.65*1.45*2.1

8000
